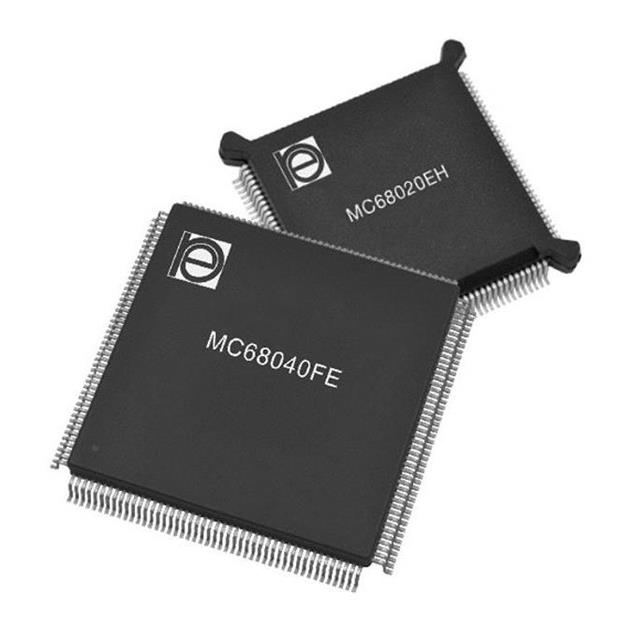

MC68EC040FE25A

Active

Motorola

IC MPU M680X0 25MHZ 184CQFP

Search across all available documentation for this part.

Active

Motorola

IC MPU M680X0 25MHZ 184CQFP

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - I/O	Mounting Type	Number of Cores/Bus Width	Package / Case	Supplier Device Package [y]	Supplier Device Package	Supplier Device Package [x]	Speed	Core Processor	Additional Interfaces
Motorola MC68HC000RC8	70 °C	0 °C	5 V	Through Hole	1 Core 32 Bit	68-BCPGA	26.92	68-PGA	26.92	8 MHz	EC000
Motorola MC68HC000CRC8	85 °C	-40 °C	5 V	Through Hole	1 Core 32 Bit	68-BCPGA	26.92	68-PGA	26.92	8 MHz	EC000
Motorola MC68EC060ZU66	70 °C	0 °C	3.3 V	Surface Mount	1 Core 32 Bit	304-LBGA Exposed Pad		304-TBGA (31x31)		66 MHz	68060	SCI SPI
Motorola MC68EC040RC20A	70 °C	0 °C	5 V	Through Hole	1 Core 32 Bit	179-BEPGA	47.24	179-PGA	47.24	20 MHz	68040	SCI SPI
Motorola MC68EC040RC33A	70 °C	0 °C	5 V	Through Hole	1 Core 32 Bit	179-BEPGA	47.24	179-PGA	47.24	33 MHz	68040	SCI SPI
Motorola MC68EC040FE25A	70 °C	0 °C	5 V	Surface Mount	1 Core 32 Bit	184-BCQFP		184-CQFP (31.3x31.3)		25 MHz	68040	SCI SPI
Motorola MC68EC060RC66	70 °C	0 °C	3.3 V	Through Hole	1 Core 32 Bit	206-BPGA				66 MHz	68060	SCI SPI

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	4	$ 94.55

General part information

68040 Microprocessor IC M680x0 1 Core, 32-Bit 25MHz 184-CQFP (31.3x31.3)

Technical documentation and resources

No documents available
