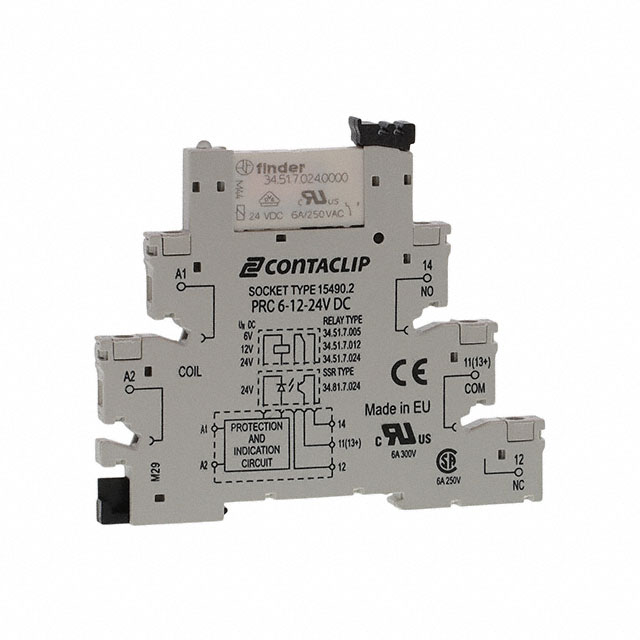

15515.2
ActiveConta-Clip, Inc.
RELAY GEN PURPOSE SPDT 6A 24V
Deep-Dive with AI
Search across all available documentation for this part.
15515.2
ActiveConta-Clip, Inc.
RELAY GEN PURPOSE SPDT 6A 24V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 15515.2 |
|---|---|
| Coil Type | Non Latching |
| Coil Voltage | 24 VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Material | Silver Nickel (AgNi) |
| Contact Rating (Current) | 6 A |
| Load - Max Switching [Max] | 2400 VA |
| Mounting Type | DIN Rail |
| Must Operate Voltage | 19.2 VDC |
| Must Release Voltage | 1.2 VDC |
| Operate Time | 5 ms |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 6 ms |
| Switching Voltage [Max] | 400 VAC |
| Termination Style | Screw Terminal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 15.77 | |
| 10 | $ 14.98 | |||
| 30 | $ 14.19 | |||
| 50 | $ 13.88 | |||
Description
General part information
15515 Series
General Purpose Relay SPDT (1 Form C) 24VDC Coil DIN Rail
Documents
Technical documentation and resources
No documents available
