5-1415535-1

Active

TE Connectivity Potter & Brumfield Relays

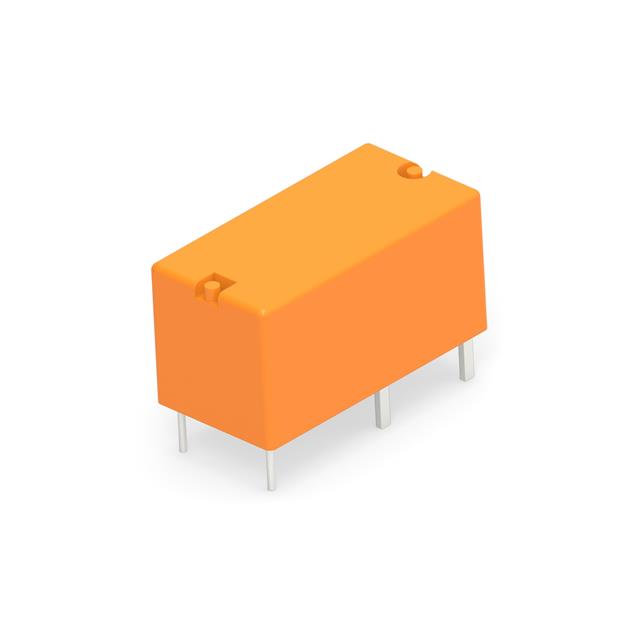

RELAY GEN PURPOSE SPST 6A 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

5-1415535-1

Active

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE SPST 6A 24V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	5-1415535-1

Approval Agency	cURus, VDE
Coil Current	8.7 mA
Coil Resistance	2.752 kOhms
Coil Type	Non Latching
Coil Voltage	24 VDC
Contact Form	SPST-NO (1 Form A)
Contact Material	Silver Nickel (AgNi)
Contact Rating (Current)	6 A
Load - Max Switching	2000 VA
Mounting Type	Through Hole
Must Operate Voltage	18 VDC
Must Release Voltage	2.4 VDC
Operate Time	8 ms
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	8 ms
Seal Rating	Sealed - Flux Protection
Switching Voltage [Max]	400 VAC
Termination Style	PC Pin

1415535 Series

Part	Contact Rating (Current)	Coil Type	Operate Time	Relay Type	Mounting Type	Switching Voltage [Max]	Load - Max Switching	Termination Style	Contact Material	Coil Resistance	Must Operate Voltage	Contact Form	Coil Voltage	Release Time	Coil Current	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Must Release Voltage	Seal Rating
TE Connectivity Potter & Brumfield Relays 4-1415535-6	6 A	Non Latching	8 ms	General Purpose	Through Hole	400 VAC	2000 VA	PC Pin	Silver Nickel (AgNi)	125 Ohms	3.8 VDC	SPST-NO (1 Form A)	5 VDC	8 ms	40 mA	85 °C	-40 °C	cURus VDE
TE Connectivity Potter & Brumfield Relays 5-1415535-5	5 A	Non Latching	8 ms	General Purpose	Through Hole	400 VAC	2000 VA	PC Pin	Silver Tin Oxide (AgSnO)	2725 Ohms	18 VDC	SPDT (1 Form C)	24 VDC	8 ms	8.8 mA	85 °C	-40 °C	cURus VDE	2.4 VDC	Sealed - Flux Protection
TE Connectivity Potter & Brumfield Relays 4-1415535-7	6 A	Non Latching	8 ms	General Purpose	Through Hole	400 VAC	2000 VA	PC Pin	Silver Nickel (AgNi)	172 Ohms	4.5 VDC	SPST-NO (1 Form A)		8 ms	34.9 mA	85 °C	-40 °C	cURus VDE	0.6 VDC	Sealed - Flux Protection
TE Connectivity Potter & Brumfield Relays 4-1415535-8	6 A	Non Latching	8 ms	General Purpose	Through Hole	400 VAC	2000 VA	PC Pin	Silver Nickel (AgNi)	405 Ohms	6.8 VDC	SPST-NO (1 Form A)	9 VDC	8 ms	22.2 mA	85 °C	-40 °C	cURus VDE
TE Connectivity Potter & Brumfield Relays 5-1415535-0	6 A	Non Latching	8 ms	General Purpose	Through Hole	400 VAC	2000 VA	PC Pin	Silver Nickel (AgNi)	1.545 kOhms	13.5 VDC	SPST-NO (1 Form A)	18 VDC	8 ms	11.7 mA	85 °C	-40 °C	cURus VDE	1.8 VDC	Sealed - Flux Protection
TE Connectivity Potter & Brumfield Relays 5-1415535-1	6 A	Non Latching	8 ms	General Purpose	Through Hole	400 VAC	2000 VA	PC Pin	Silver Nickel (AgNi)	2.752 kOhms	18 VDC	SPST-NO (1 Form A)	24 VDC	8 ms	8.7 mA	85 °C	-40 °C	cURus VDE	2.4 VDC	Sealed - Flux Protection

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 4.65
		10	$ 4.36
		25	$ 3.88
		50	$ 3.68
		100	$ 3.49
		250	$ 3.10
		500	$ 2.91
		1000	$ 2.71

Description

General part information

1415535 Series

General Purpose Relay SPST-NO (1 Form A) 24VDC Coil Through Hole
