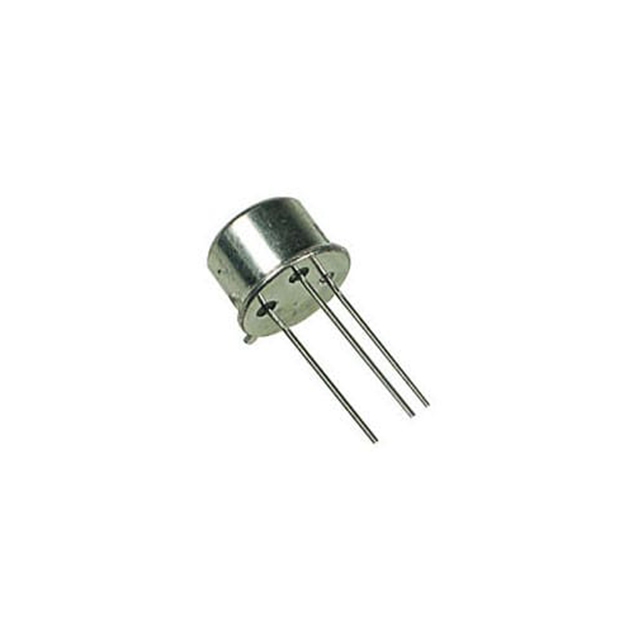

2N2329A

Active

Solid State Inc.

SCR 1.6 AMP 400 V TO39

Search across all available documentation for this part.

Active

Solid State Inc.

SCR 1.6 AMP 400 V TO39

Technical Specifications

Parameters and characteristics for this part

Specification	2N2329A

Current - Gate Trigger (Igt) (Max) [Max]	200 µA
Current - Hold (Ih) (Max)	2 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	15 A
Current - Off State (Max) [Max]	10 µA
Current - On State (It (AV)) (Max) [Max]	1.6 A
Current - On State (It (RMS)) (Max) [Max]	1.6 A
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 °C
Package / Case	TO-205AA, TO-5-3 Metal Can
SCR Type	Standard Recovery
Supplier Device Package	TO-5
Voltage - Gate Trigger (Vgt) (Max) [Max]	800 mV
Voltage - Off State	400 V
Voltage - On State (Vtm) (Max)	2.2 V

Part	Supplier Device Package	Package / Case	Current - On State (It (RMS)) (Max) [Max]	Current - On State (It (AV)) (Max) [Max]	SCR Type	Voltage - Gate Trigger (Vgt) (Max) [Max]	Current - Non Rep. Surge 50, 60Hz (Itsm)	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Voltage - Off State	Current - Off State (Max) [Max]	Current - Gate Trigger (Igt) (Max) [Max]	Voltage - On State (Vtm) (Max)	Current - Hold (Ih) (Max)
Solid State Inc. 2N2329A	TO-5	TO-205AA TO-5-3 Metal Can	1.6 A	1.6 A	Standard Recovery	800 mV	15 A	125 °C	-65 °C	Through Hole	400 V	10 µA	200 µA	2.2 V	2 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

SCR 400 V 1.6 A Standard Recovery Through Hole TO-5
