TMC6200-BOB

Active

Analog Devices Inc./Maxim Integrated

BREAKOUTBOARD FOR TMC6200

Search across all available documentation for this part.

Active

Analog Devices Inc./Maxim Integrated

BREAKOUTBOARD FOR TMC6200

Technical Specifications

Parameters and characteristics for this part

Part	High Side Voltage - Max (Bootstrap) [Max]	Gate Type	Current - Peak Output (Source, Sink)	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Number of Drivers	Package / Case	Input Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Mounting Type	Driven Configuration	Operating Temperature [Min]	Operating Temperature [Max]	Channel Type	Supplier Device Package	Function	Utilized IC / Part	Type	Primary Attributes	Supplied Contents	Secondary Attributes
Analog Devices Inc./Maxim Integrated TMC6200-TA-T	85 V	N-Channel MOSFET	1.5 A 1.5 A	20 ns	20 ns	6	48-TQFP Exposed Pad	CMOS	10 VDC	60 V	Surface Mount	Half-Bridge	-40 °C	125 ¯C	3-Phase	48-TQFP-EP (7x7)
Analog Devices Inc./Maxim Integrated TMC6200-BOB																	Motor Controller/Driver	TMC6200	Power Management	BLDC PMSM Servo	Board(s)	SPI Interface(s)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 52.48

General part information

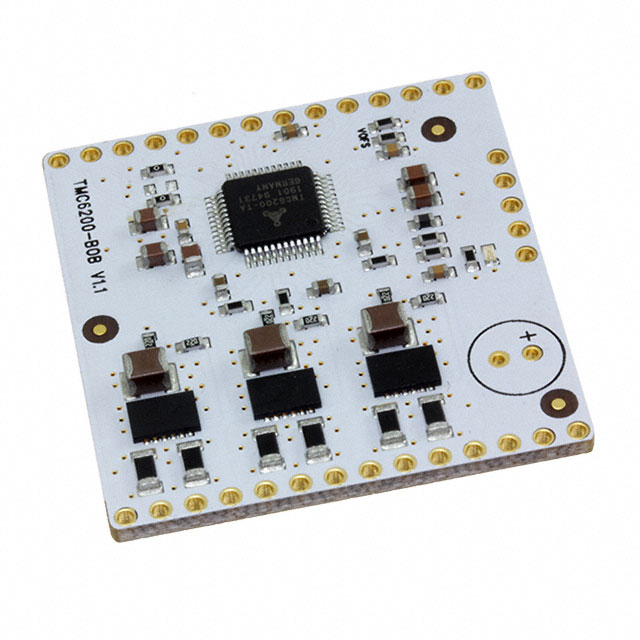

TMC6200 Motor Controller/Driver Power Management Evaluation Board
