DK-U1-VCU110-G

Active

AMD

DEV KIT FOR VCU110

Search across all available documentation for this part.

Active

AMD

DEV KIT FOR VCU110

Technical Specifications

Parameters and characteristics for this part

Specification	DK-U1-VCU110-G

Contents	Cable(s), Board(s), Power Supply
For Use With/Related Products	XCVU190
Interconnect System	FMC, Pmod
Platform	Virtex UltraScale FPGA VCU110
Suggested Programming Environment	Vivado
Utilized IC / Part	XCVU190

Part	Package / Case	Voltage - Supply [Max]	Voltage - Supply [Min]	Number of I/O	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package [x]	Supplier Device Package [y]	Supplier Device Package	Mounting Type	Number of Logic Elements/Cells	Number of LABs/CLBs	Total RAM Bits	Platform	Interconnect System	Suggested Programming Environment	Note	For Use With/Related Products	Utilized IC / Part	Contents
AMD XCVU190-3FLGB2104E	2104-BBGA FCBGA	1.03 V	0.97 V	702	100 °C	0 °C	47.5	47.5	2104-FCBGA	Surface Mount	2349900	134280	150937600 bits
AMD XCVU190-3FLGC2104E	2104-BBGA FCBGA	1.03 V	0.97 V	416	100 °C	0 °C	47.5	47.5	2104-FCBGA	Surface Mount	2349900	134280	150937600 bits
AMD XCVU190-2FLGA2577E	2577-BBGA FCBGA	0.979 V	0.922 V	448 I/O	100 °C	0 °C			2577-FCBGA (52.5x52.5)	Surface Mount	2349900	134280	150937600 bits
AMD DK-U1-VCU110-ES-G-J														Virtex UltraScale FPGA VCU110 ES Japan	FMC Pmod	Vivado	J = Japan version does not ship with a power supply	XCVU190	XCVU190	Board(s) Cable(s)
AMD DK-U1-VCU110-G														Virtex UltraScale FPGA VCU110	FMC Pmod	Vivado		XCVU190	XCVU190	Board(s) Cable(s) Power Supply

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 22885.20

General part information

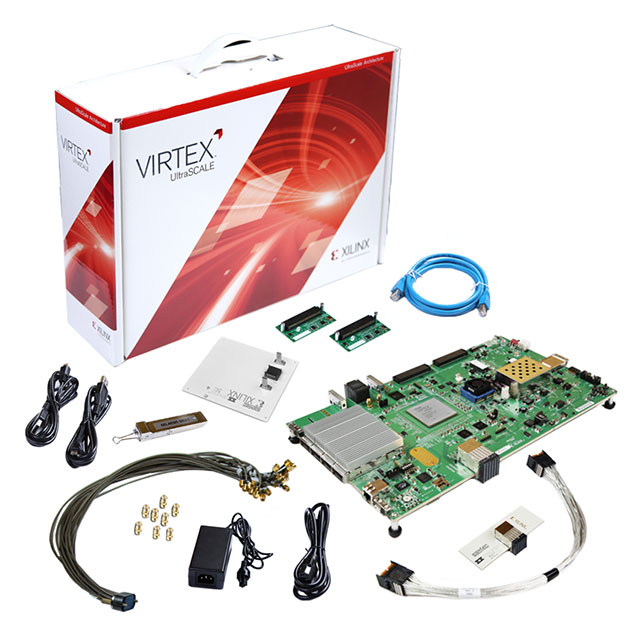

Virtex UltraScale FPGA VCU110 XCVU190 Virtex® UltraScale™ FPGA Evaluation Board
