VER05US050-MB

Obsolete

XP POWER

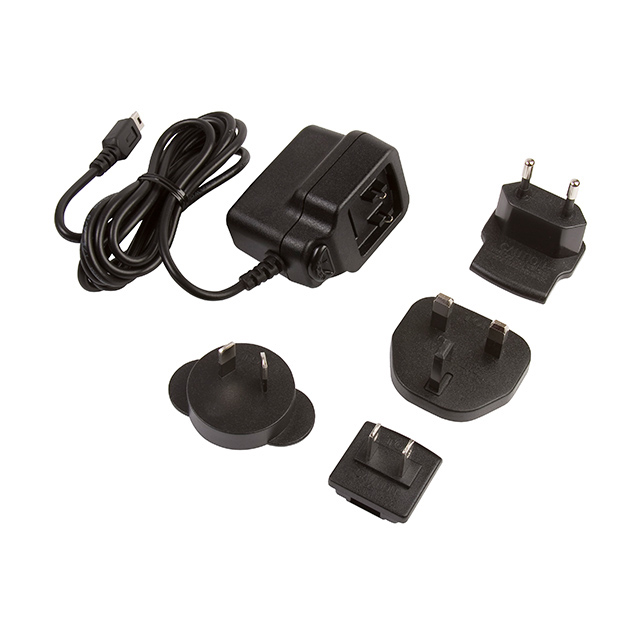

AC/DC WALL MOUNT ADAPTER 5V 5W

Search across all available documentation for this part.

Obsolete

XP POWER

AC/DC WALL MOUNT ADAPTER 5V 5W

Technical Specifications

Parameters and characteristics for this part

Part	Efficiency	Polarization	Current - Output (Max) [Max]	Power (Watts)	Voltage - Input [Min]	Voltage - Input [Max]	Form	Cord Length	Cord Length	Weight	Weight	Operating Temperature [Max]	Operating Temperature [Min]	Input Type	Voltage - Output	Applications	No Load Power Consumption	Approval Agency	Standard Number	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Input Connector	Output Connector	Output Connector [diameter]	Output Connector [z]	Region Utilized
XP POWER VER05US090-JA	Level VI	Positive Center	550 mA	5 W	90 VAC	264 VAC	Wall Mount (Class II)	1.5 m	59 in	0.28 lb	127.01 g	60 °C	0 °C	Multi-Blade (Included)	9 V	ITE (Commercial)	100 mW	CB	62368-1	2.16 in	54.9 mm	1.45 in	1.69 in	42.9 mm	37 mm	Multi-Blade	Barrel Plug	2.1 mm 5.5 mm	12 mm	International
XP POWER VER05US050-MB	Level VI		1 A	5 W	90 VAC	264 VAC	Wall Mount (Class II)	1.5 m	59 in	0.28 lb	127.01 g	60 °C	0 °C	Multi-Blade (Included)	5 V	ITE (Commercial)	100 mW	CB	62368-1	2.16 in	54.9 mm	1.45 in	1.69 in	42.9 mm	37 mm	Multi-Blade	USB Mini			International

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

5V 5 W AC/DC External Wall Mount (Class II) Adapter Multi-Blade (Included) Input
