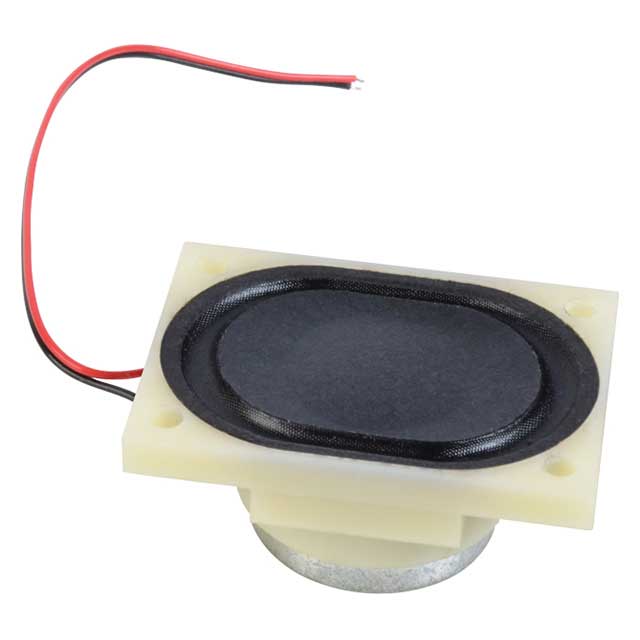

CDS-40288-L100

Active

CUI Devices

SPEAKER 8OHM 6W TOP PORT 84DB

Search across all available documentation for this part.

Active

CUI Devices

SPEAKER 8OHM 6W TOP PORT 84DB

Technical Specifications

Parameters and characteristics for this part

Part	Power - Rated	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Technology	Port Location	Frequency - Self Resonant	Frequency Range [Min]	Frequency Range [Max]	Material - Cone	Type	Termination	Efficiency - dBA	Efficiency - Type	Efficiency - Testing	Impedance	Material - Magnet	Shape	Height - Seated (Max)	Power - Max [Max]
CUI Devices CDS-40288	6 W	28.5 mm	1.122 in	40 mm	1.575 in	0.689 in	17.5 mm	Magnetic	Top	650 Hz	520 Hz	10 kHz	Paper/Cloth	General Purpose	Solder Eyelet(s)	84 dBA	Sound Pressure Level (SPL)	1 mW/100mm	8 Ohms	Nd-Fe-B	Rectangular
CUI Devices CDS-40304	2 W	30 mm	1.181 in	40 mm	1.575 in	0.28 in		Magnetic	Top	400 Hz	320 Hz	20 kHz	Paper/Cloth	General Purpose	Solder Pads	79 dBA	Sound Pressure Level (SPL)		4 Ohms	Nd-Fe-B	Rectangular	7.1 mm	3 W
CUI Devices CDS-40288-L100	6 W	28.5 mm	1.122 in	40 mm	1.575 in	0.689 in	17.5 mm	Magnetic	Top	650 Hz	520 Hz	10 kHz	Paper/Cloth	General Purpose	Wire Leads	84 dBA	Sound Pressure Level (SPL)	1 mW/100mm	8 Ohms	Nd-Fe-B	Rectangular

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Ohms General Purpose Speaker 6 W 520 Hz ~ 10 kHz Top Rectangular
