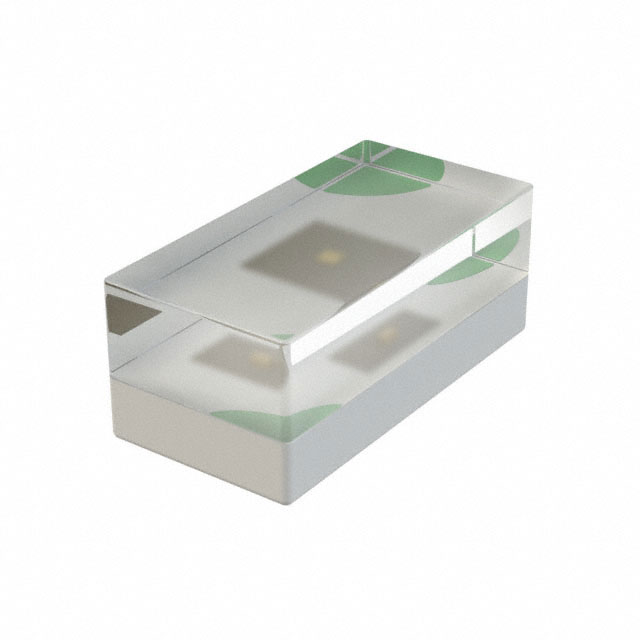

IN-S42CTQIR

Active

Inolux

TOP VIEW / 0402 / 1.0X0.5X0.5

Search across all available documentation for this part.

Active

Inolux

TOP VIEW / 0402 / 1.0X0.5X0.5

Technical Specifications

Parameters and characteristics for this part

Specification	IN-S42CTQIR

Current - DC Forward (If) (Max)	70 mA
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Top View
Package / Case	0402 (1005 Metric)
Radiant Intensity (Ie) Min @ If [Min]	5.5 mW/sr
Type	Infrared (IR)
Viewing Angle	140 °
Voltage - Forward (Vf) (Typ)	1.6 V
Wavelength	850 nm

Part	Mounting Type	Height (Max) [Max] [z]	Wavelength - Dominant	Millicandela Rating	Wavelength - Peak	Viewing Angle	Color	Voltage - Forward (Vf) (Typ)	Supplier Device Package	Lens Size [y]	Lens Size [x]	Current - Test	Lens Style	Size / Dimension [x]	Size / Dimension [y]	Package / Case	Lens Transparency	Current - DC Forward (If) (Max)	Radiant Intensity (Ie) Min @ If [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Wavelength	Type	Orientation
Inolux IN-S42BT5A	Surface Mount	0.5 mm	605 nm	30 mcd	603 nm	120 °	Amber	2 V	0402	0.5 mm	0.7 mm	5 mA	Rectangle with Flat Top	1 mm	0.5 mm	0402 (1005 Metric)	Clear
Inolux IN-S42BT5YG	Surface Mount	0.5 mm	571 nm	11.5 mcd		120 °	Yellow-Green	2 V	0402	0.5 mm	0.7 mm	5 mA	Rectangle with Flat Top	1 mm	0.5 mm	0402 (1005 Metric)	Clear
Inolux IN-S42CTQIR	Surface Mount					140 °		1.6 V								0402 (1005 Metric)		70 mA	5.5 mW/sr	85 °C	-40 °C	850 nm	Infrared (IR)	Top View

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Infrared (IR) Emitter 850nm 1.6V 70mA 5.5mW/sr @ 70mA (Typ) 140° 0402 (1005 Metric)
