UC5601QPTR

Obsolete

Texas Instruments

IC TERMINATOR SCSI 28PLCC

Search across all available documentation for this part.

Obsolete

Texas Instruments

IC TERMINATOR SCSI 28PLCC

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Operating Temperature [Max]	Number of Terminations	Supplier Device Package	Type	Package / Case	Package / Case	Package / Case	Package / Case [x]	Package / Case [y]
Texas Instruments UC5601N	Through Hole	70 °C	18	24-PDIP	SCSI	24-DIP	0.6 in	15.24 mm

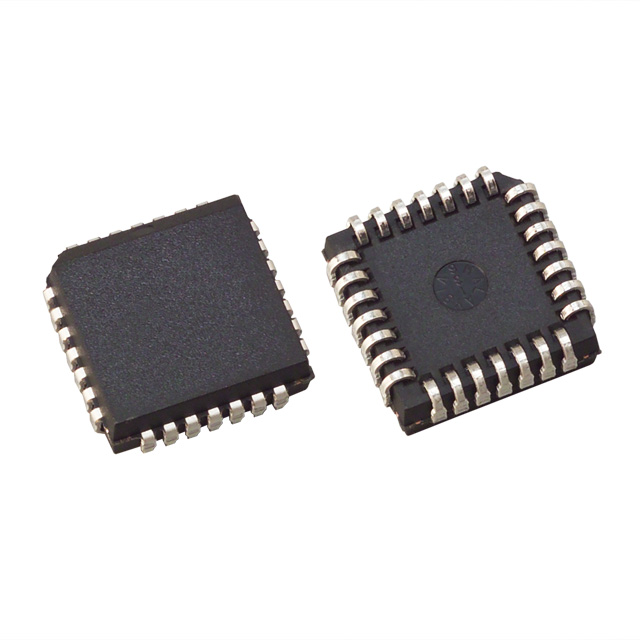

Texas Instruments UC5601QPTR	Surface Mount	70 °C	18	28-PLCC (11.51x11.51)	SCSI	28-LCC (J-Lead)
Texas Instruments UC5601DWP	Surface Mount	70 °C	18	28-SOIC	SCSI	28-SOIC			0.295 in	7.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

SCSI Terminator 18 Terminations 28-PLCC (11.51x11.51)
