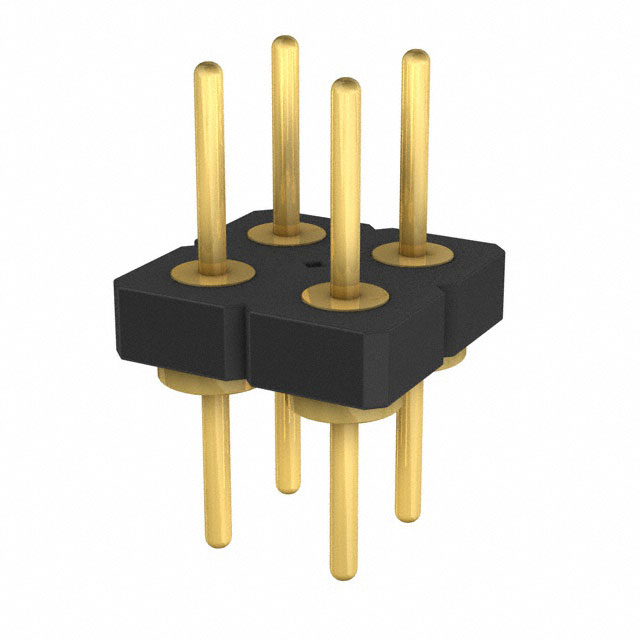

BDL-102-G-F

Active

Samtec Inc.

CONN HEADER VERT 4POS 2.54MM

Search across all available documentation for this part.

Active

Samtec Inc.

CONN HEADER VERT 4POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Specification	BDL-102-G-F

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	0.51 µm
Contact Finish Thickness - Mating	20 µin
Contact Length - Mating [x]	0.122 in
Contact Length - Mating [x]	3.1 mm
Contact Length - Post [x]	3.18 mm
Contact Length - Post [x]	0.125 in
Contact Shape	Circular
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.085 "
Insulation Height	2.15 mm
Insulation Material	Polyamide (PA), Nylon
Mounting Type	Through Hole
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Overall Contact Length	8.43 mm
Overall Contact Length	0.332 in
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Termination	Solder

Part	Shrouding	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Termination	Number of Positions Loaded	Number of Rows	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish - Post	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Contact Shape	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Contact Length - Mating [x]	Contact Length - Mating [x]	Number of Positions	Contact Type	Overall Contact Length	Overall Contact Length	Pitch - Mating	Pitch - Mating	Contact Finish - Mating	Insulation Material	Insulation Height	Insulation Height	Insulation Color	Fastening Type
Samtec Inc. BDL-102-G-F	Unshrouded	2.54 mm	0.1 in	Solder	All	2	3.18 mm	0.125 in	Gold	-55 °C	125 °C	Through Hole	Circular	0.51 µm	20 µin	Header	0.122 in	3.1 mm	4	Male Pin	8.43 mm	0.332 in	0.1 in	2.54 mm	Gold	Nylon Polyamide (PA)	0.085 "	2.15 mm	Black	Push-Pull
