R316004000

Active

Radiall USA, Inc.

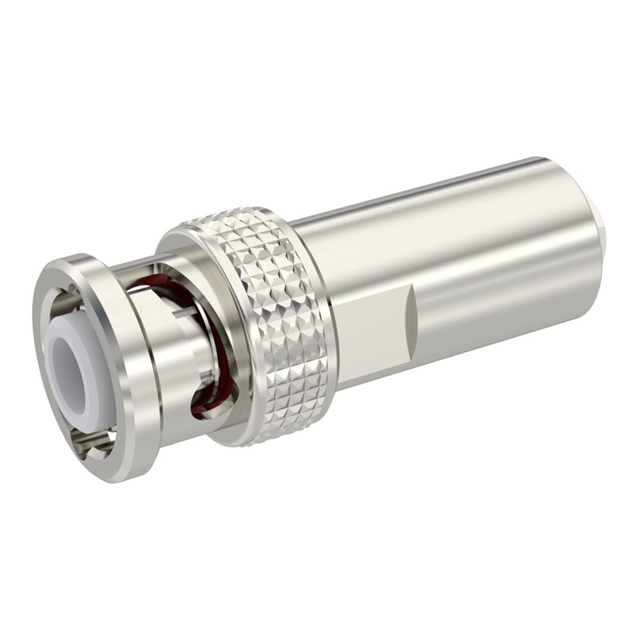

BNC HT-MHV / STRAIGHT PLUG CLAMP

Search across all available documentation for this part.

Active

Radiall USA, Inc.

BNC HT-MHV / STRAIGHT PLUG CLAMP

Technical Specifications

Parameters and characteristics for this part

Specification	R316004000

Body Finish	Nickel
Body Material	Brass
Cable Group	RG-174, 316, 179, 316 Double Braid
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	2 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Clamp

Part	Cable Group	Impedance	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Frequency - Max [Max]	Body Material	Connector Style	Dielectric Material	Mating Cycles	Contact Termination	Center Contact Material	Body Finish	Housing Color	Fastening Type	Connector Type	Shield Termination	Center Contact Plating	Number of Ports
Radiall USA, Inc. R316004000	179 316 316 Double Braid RG-174	50 Ohms	155 °C	-55 °C	Free Hanging (In-Line)	2 GHz	Brass	BNC	Polytetrafluoroethylene (PTFE)	500	Solder	Brass	Nickel	Silver	Bayonet Lock	Male Pin Plug	Clamp	Gold	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 108.15

General part information

BNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
