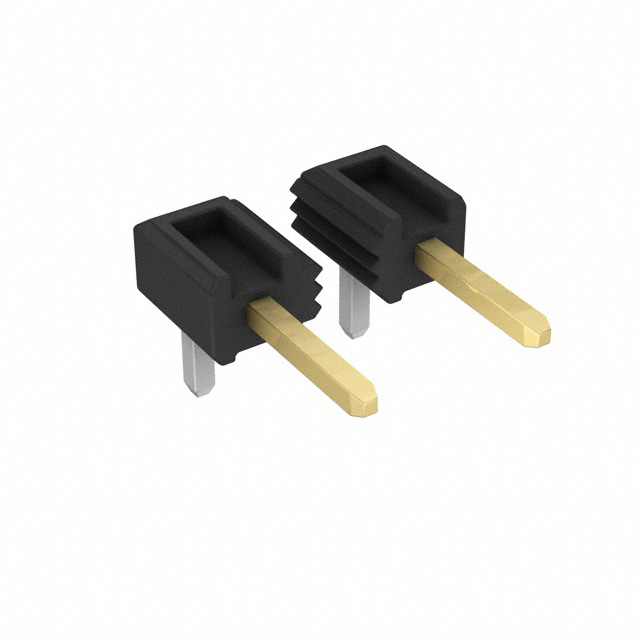

A4B-8PA-2DS(71)

Obsolete

Hirose Electric USA, Inc.

CONN HEADER R/A 8POS 2MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

A4B-8PA-2DS(71)

Obsolete

Hirose Electric USA, Inc.

CONN HEADER R/A 8POS 2MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	A4B-8PA-2DS(71)

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	2 çm
Contact Finish Thickness - Post	78.7 çin
Contact Length - Mating	0.138 in
Contact Length - Mating	3.5 mm
Contact Length - Post	0.102 in
Contact Length - Post	2.6 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	2 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.079 in
Insulation Height	2 mm
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Kinked Pin, Solder
Voltage Rating	200 V

A4B-8PA Series

Part	Insulation Height	Insulation Height	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Color	Termination	Style	Contact Length - Mating	Contact Length - Mating	Contact Finish - Mating	Number of Positions	Contact Type	Material Flammability Rating	Contact Length - Post	Contact Length - Post	Number of Rows	Insulation Material	Mounting Type	Fastening Type	Pitch - Mating [x]	Pitch - Mating [x]	Contact Shape	Connector Type	Number of Positions Loaded	Shrouding	Row Spacing - Mating	Row Spacing - Mating	Overall Contact Length	Overall Contact Length	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Voltage Rating	Current Rating (Amps)	Contact Finish - Post
Hirose Electric USA, Inc. A4B-8PA-2DS(51)	0.079 in	2 mm	Brass	85 °C	-55 °C	Black	Kinked Pin Solder	Board to Board Cable	0.138 in	3.5 mm	Gold	8	Male Pin	UL94 V-0	0.102 in	2.6 mm	1	Nylon Polyamide (PA)	Through Hole Right Angle	Push-Pull	0.079 in	2 mm	Square	Header	All	Unshrouded
Hirose Electric USA, Inc. A4B-8PA-2DSA(51)	0.071 "	1.8 mm	Brass	85 °C	-55 °C	Black	Solder	Board to Board Cable	0.138 in	3.5 mm	Gold	8	Male Pin	UL94 V-0	0.102 in	2.6 mm	1	Nylon Polyamide (PA)	Through Hole	Push-Pull	0.079 in	2 mm	Square	Header	All	Unshrouded	0.079 in	2 mm	7.9 mm	0.311 in
Hirose Electric USA, Inc. A4B-8PA-2DSA(71)	0.071 "	1.8 mm	Brass	85 °C	-55 °C	Black	Solder	Board to Board Cable	0.138 in	3.5 mm	Gold	8	Male Pin	UL94 V-0	0.102 in	2.6 mm	1	Nylon Polyamide (PA)	Through Hole	Push-Pull	0.079 in	2 mm	Square	Header	All	Unshrouded			7.9 mm	0.311 in	2 çm	78.7 çin	Flash	200 V	2 A	Tin
Hirose Electric USA, Inc. A4B-8PA-2DS(71)	0.079 in	2 mm	Brass	85 °C	-55 °C	Black	Kinked Pin Solder	Board to Board Cable	0.138 in	3.5 mm	Gold	8	Male Pin	UL94 V-0	0.102 in	2.6 mm	1	Nylon Polyamide (PA)	Through Hole Right Angle	Push-Pull	0.079 in	2 mm	Square	Header	All	Unshrouded					2 çm	78.7 çin	Flash	200 V	2 A	Tin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

A4B-8PA Series

Connector Header Through Hole, Right Angle 8 position 0.079" (2.00mm)
