131I,GY

Active

Serpac

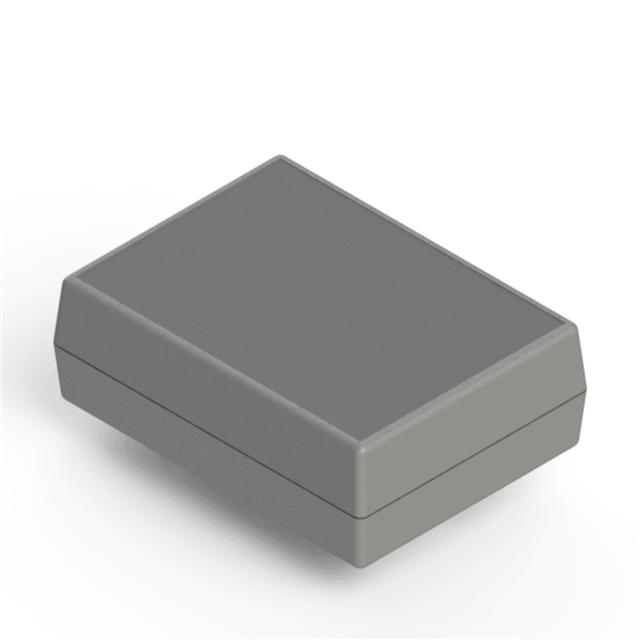

BOX ABS GRAY 4.38"L X 3.25"W

Search across all available documentation for this part.

Active

Serpac

BOX ABS GRAY 4.38"L X 3.25"W

Technical Specifications

Parameters and characteristics for this part

Specification	131I,GY

Area (L x W)	14.2 in²
Area (L x W)	92 cm˛
Color	Gray
Container Type	Box
Design	Split Sides, Hand Held
Features	PCB Supports
Height [z]	38.1 mm
Height [z]	1.5 in
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40, NEMA 1
Thickness	2.54 mm
Thickness	0.1 in
Weight	0.19 lb
Weight	86.18 g

Part	Material Flammability Rating	Ratings	Design	Color	Features	Material	Container Type	Weight	Weight	Area (L x W)	Area (L x W)	Height [z]	Height [z]	Thickness	Thickness
Serpac 131I,GY	UL94 HB	IP40 NEMA 1	Hand Held Split Sides	Gray	PCB Supports	Plastic ABS	Box	0.19 lb	86.18 g	14.2 in²	92 cm˛	38.1 mm	1.5 in	2.54 mm	0.1 in
Serpac 131I,AL	UL94 HB	IP40 NEMA 1	Hand Held Split Sides	Almond	PCB Supports	Plastic ABS	Box	0.19 lb	86.18 g	14.2 in²	92 cm˛	38.1 mm	1.5 in	2.54 mm	0.1 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Box Plastic, ABS Gray Hand Held, Split Sides 4.380" L x 3.250" W (111.25mm x 82.55mm) X 1.500" (38.10mm)
