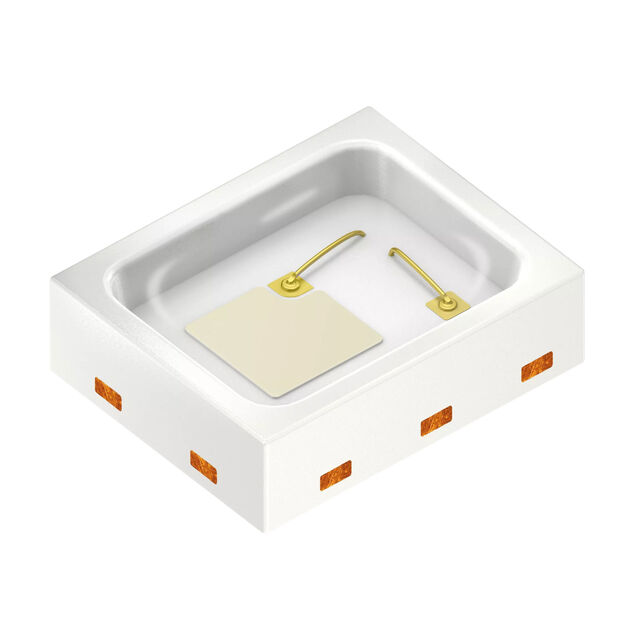

CT DBLP32.12-20-R18
Activeams-OSRAM USA INC.
LED GREEN 3SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CT DBLP32.12-20-R18
Activeams-OSRAM USA INC.
LED GREEN 3SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CT DBLP32.12-20-R18 |
|---|---|
| Color | Green |
| Current - Test | 20 mA |
| Height (Max) [Max] [z] | 0.7 mm |
| Lens Size [x] | 2.2 mm |
| Lens Size [y] | 1.8 mm |
| Lens Style | Rectangle with Flat Top |
| Mounting Type | Surface Mount |
| Package / Case | 3-SMD, No Lead |
| Size / Dimension [x] | 2.2 mm |
| Size / Dimension [y] | 1 mm |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 2.3 V |
| Wavelength - Peak | 526 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.88 | |
| 10 | $ 0.61 | |||
| 100 | $ 0.45 | |||
| 500 | $ 0.38 | |||
| 1000 | $ 0.35 | |||
| 2000 | $ 0.33 | |||
| Digi-Reel® | 1 | $ 0.88 | ||
| 10 | $ 0.61 | |||
| 100 | $ 0.45 | |||
| 500 | $ 0.38 | |||
| 1000 | $ 0.35 | |||
| 2000 | $ 0.33 | |||
| Tape & Reel (TR) | 4000 | $ 0.32 | ||
| 8000 | $ 0.30 | |||
| 12000 | $ 0.29 | |||
| 20000 | $ 0.29 | |||
| 28000 | $ 0.28 | |||
Description
General part information
CT DBLP32 Series
Green 530nm LED Indication - Discrete 2.3V 3-SMD, No Lead
