SG1015NM-2450
ActiveNearson Inc.

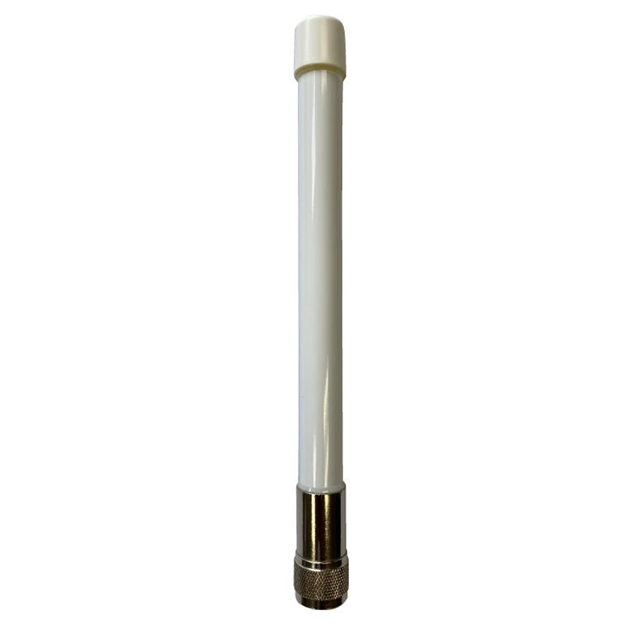

RF ANTENNA 2.4GHZ WHIP STR N MAL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SG1015NM-2450
ActiveNearson Inc.
RF ANTENNA 2.4GHZ WHIP STR N MAL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SG1015NM-2450 |
|---|---|
| Antenna Type | Whip, Straight |
| Applications | General Purpose |
| Frequency (Center/Band) | 2.44175 GHz |
| Frequency Range [Max] | 2.4835 GHz |
| Frequency Range [Min] | 2.4 GHz |
| Gain | 5 dBi |
| Height (Max) [Max] | 205 mm |
| Height (Max) [Max] | 8.071 in |
| Ingress Protection | IP67 |
| Mounting Type | Connector Mount |
| Number of Bands | 1 |
| Termination | N Type |
| VSWR | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 49.31 | |
| 10 | $ 46.01 | |||
| 25 | $ 44.08 | |||
| 100 | $ 39.95 | |||
| 250 | $ 38.57 | |||
Description
General part information
SG1015 Series
2.44175GHz General Purpose Whip, Straight RF Antenna 2.4GHz ~ 2.4835GHz 5dBi N Type Connector Mount
