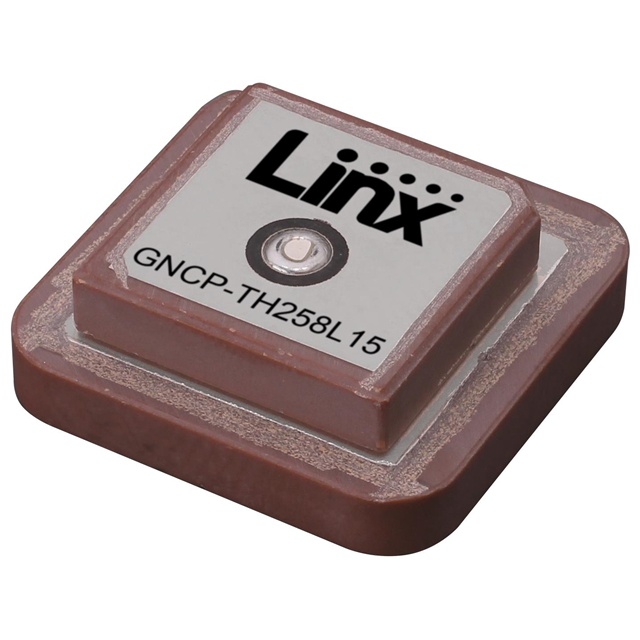

ANT-GNCP-TH258L15

Active

TE Connectivity Linx

RF ANT GNSS PATCH L1 L5 25MM PIN

Search across all available documentation for this part.

Active

TE Connectivity Linx

RF ANT GNSS PATCH L1 L5 25MM PIN

Technical Specifications

Parameters and characteristics for this part

Specification	ANT-GNCP-TH258L15

Antenna Type	Ceramic Patch
Applications	GLONASS, GNSS, GPS, Beidou, Galileo
Frequency (Center/Band)	1.176 GHz, 1.5808 GHz
Frequency Group	UHF
Frequency Group [Max]	2 GHz
Frequency Group [Min]	1 GHz
Frequency Range [Max]	1.6086 GHz, 1.183 GHz
Frequency Range [Min]	1.5531 GHz, 1.17 GHz
Gain	5.6 dBi, 1 dBi
Height (Max) [Max]	8 mm
Height (Max) [Max] [z]	0.315 in
Mounting Type	Adhesive
Number of Bands	2
RF Family/Standard	Navigation
Termination	Pin
VSWR	6.4, 5.9

Part	Frequency Group [Max]	Frequency Group [Min]	Frequency Group	Applications	Features [x]	Features	Gain	Frequency Range [Max]	Frequency Range [Min]	RF Family/Standard	Number of Bands	Frequency (Center/Band)	Mounting Type	VSWR	Height (Max) [Max]	Height (Max) [Max] [z]	Termination	Antenna Type
TE Connectivity Linx ANT-GNCP-CA158L160	2 GHz	1 GHz	UHF	Beidou Galileo GLONASS GNSS GPS	60 mm	LNA	6.7 dBi 12.4 dB 13.9 dBi	1.563 GHz 1.5836 GHz 1.5917 GHz 1.6086 GHz	1.559 GHz 1.567 GHz 1.5876 GHz 1.593 GHz	Navigation	4	1.561 GHz 1.575 GHz 1.5897 GHz 1.602 GHz
TE Connectivity Linx ANT-GNCP-CA188L165	2 GHz	1 GHz	UHF	Beidou Galileo GLONASS GNSS GPS		Cable - 65mm LNA	10.6 dB 13.7 dB 14.1 dBi	1.563 GHz 1.5836 GHz 1.5917 GHz 1.6086 GHz	1.559 GHz 1.567 GHz 1.5876 GHz 1.593 GHz	Navigation	4	1.561 GHz 1.575 GHz 1.5897 GHz 1.602 GHz
TE Connectivity Linx ANT-GNCP-TH258L15	2 GHz	1 GHz	UHF	Beidou Galileo GLONASS GNSS GPS			1 dBi 5.6 dBi	1.183 GHz 1.6086 GHz	1.17 GHz 1.5531 GHz	Navigation	2	1.176 GHz 1.5808 GHz	Adhesive	5.9 6.4	8 mm	0.315 in	Pin	Ceramic Patch

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 5.25

General part information

RF ANTENNA Beidou, Galileo, GLONASS, GNSS, GPS Ceramic Patch Pin Adhesive

Technical documentation and resources

No documents available
