658-45ABT4E

Active

Wakefield-Vette

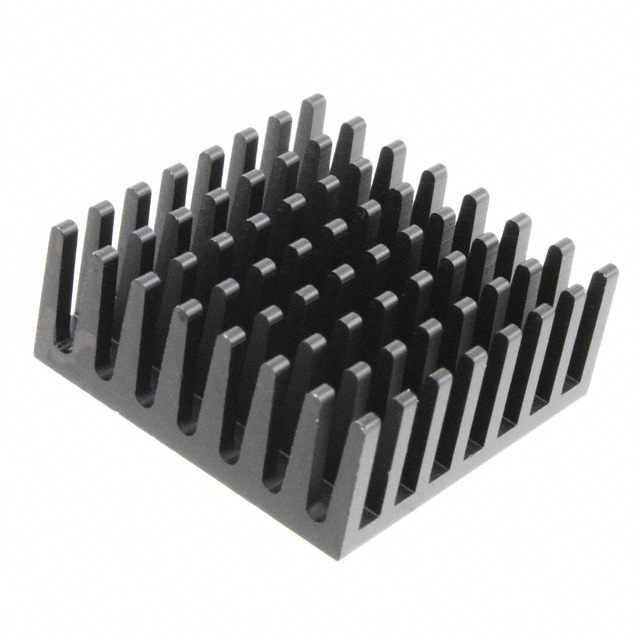

HEATSINK CPU 28MM SQ BLK W/TAPE

Search across all available documentation for this part.

Active

Wakefield-Vette

HEATSINK CPU 28MM SQ BLK W/TAPE

Technical Specifications

Parameters and characteristics for this part

Specification	658-45ABT4E

Attachment Method	Thermal Tape, Adhesive (Included)
Fin Height	11.43 mm
Fin Height	0.45 in
Length [x]	27.94 mm
Length [x]	1.1 "
Material	Aluminum
Material Finish	Black Anodized
Package Cooled	BGA
Shape	Square, Pin Fins
Thermal Resistance @ Forced Air Flow	200 LFM, 6 °C/W
Type	Top Mount
Width [x]	1.1 "
Width [x]	27.94 mm

Part	Type	Width [x]	Width [x]	Package Cooled	Attachment Method	Length [x]	Length [x]	Shape	Fin Height	Fin Height	Material Finish	Thermal Resistance @ Forced Air Flow	Material
Wakefield-Vette 658-45ABT5	Top Mount	1.1 "	27.94 mm	BGA	Thermal Tape Adhesive (Not Included)	27.94 mm	1.1 "	Pin Fins Square	11.43 mm	0.45 in	Black Anodized	6 °C/W 200 LFM	Aluminum
Wakefield-Vette 658-45ABT6	Top Mount	1.1 "	27.94 mm	BGA	Thermal Tape Adhesive (Not Included)	27.94 mm	1.1 "	Pin Fins Square	11.43 mm	0.45 in	Black Anodized	6 °C/W 200 LFM	Aluminum
Wakefield-Vette 658-45ABT4E	Top Mount	1.1 "	27.94 mm	BGA	Thermal Tape Adhesive (Included)	27.94 mm	1.1 "	Pin Fins Square	11.43 mm	0.45 in	Black Anodized	6 °C/W 200 LFM	Aluminum
Wakefield-Vette 658-45AB	Top Mount	1.1 "	27.94 mm	BGA	Thermal Tape Adhesive (Not Included)	27.94 mm	1.1 "	Pin Fins Square	11.43 mm	0.45 in	Black Anodized	6 °C/W 200 LFM	Aluminum

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Heat Sink BGA Aluminum 3.0W @ 50°C Top Mount
