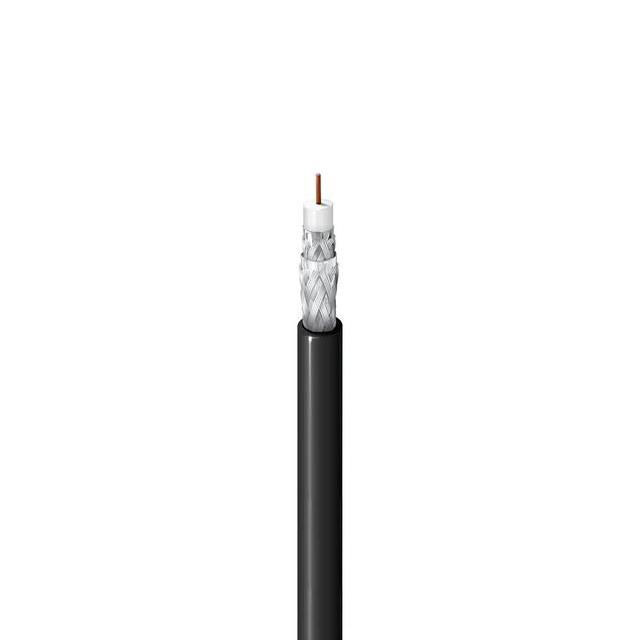

1189A 010U500

Active

Belden Inc.

CABLE COAXIAL RG-6 18AWG 500'

Search across all available documentation for this part.

Active

Belden Inc.

CABLE COAXIAL RG-6 18AWG 500'

Technical Specifications

Parameters and characteristics for this part

Specification	1189A 010U500

Cable Group	RG-6
Cable Type	Coaxial
Conductor Material	Steel, Copper Coated
Conductor Strand	Solid
Dielectric Diameter [diameter]	0.18 in
Dielectric Diameter [diameter]	4.57 mm
Dielectric Material	Foam Polyethylene (FPE)
Features	Quad Shield
Impedance	75 Ohms
Jacket (Insulation) Diameter [diameter]	7.47 mm
Jacket (Insulation) Diameter [diameter]	0.294 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Black
Length	152.4 m
Length	6000 in
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Shield Coverage	100 %, 60 %, 40 %
Shield Material	Aluminum
Shield Type	Foil, Braid
Usage	CATV
VoP, Velocity of Propagation	83
Wire Gauge	18 AWG

Part	Cable Group	Conductor Material	Dielectric Material	Usage	Features	VoP, Velocity of Propagation	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Cable Type	Shield Material	Impedance	Wire Gauge	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Strand	Length	Length	Shield Type	Jacket (Insulation) Material	Shield Coverage	Operating Temperature [Min]	Operating Temperature [Max]	Jacket Color
Belden Inc. 1189A 0091000	RG-6	Copper Coated Steel	Foam Polyethylene (FPE)	CATV	Quad Shield	83	0.18 in	4.57 mm	Coaxial	Aluminum	75 Ohms	18 AWG	7.47 mm	0.294 in	Solid	304.8 m	1000 ft	Braid Foil	Poly-Vinyl Chloride (PVC)	40 % 60 % 100 %	-40 °C	80 C
Belden Inc. 1189A 009N1000	RG-6	Copper Coated Steel	Foam Polyethylene (FPE)	CATV	Quad Shield	83	0.18 in	4.57 mm	Coaxial	Aluminum	75 Ohms	18 AWG	7.47 mm	0.294 in	Solid	304.8 m	1000 ft	Braid Foil	Poly-Vinyl Chloride (PVC)	40 % 60 % 100 %	-40 °C	80 C
Belden Inc. 1189A 009U1000	RG-6	Copper Coated Steel	Foam Polyethylene (FPE)	CATV	Quad Shield	83	0.18 in	4.57 mm	Coaxial	Aluminum	75 Ohms	18 AWG	7.47 mm	0.294 in	Solid	304.8 m	1000 ft	Braid Foil	Poly-Vinyl Chloride (PVC)	40 % 60 % 100 %	-40 °C	80 C
Belden Inc. 1189A 010U500	RG-6	Copper Coated Steel	Foam Polyethylene (FPE)	CATV	Quad Shield	83	0.18 in	4.57 mm	Coaxial	Aluminum	75 Ohms	18 AWG	7.47 mm	0.294 in	Solid	152.4 m	6000 in	Braid Foil	Poly-Vinyl Chloride (PVC)	40 % 60 % 100 %	-40 °C	80 C	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Coaxial Cable 18 AWG RG-6 500.0' (152.40m) 75 Ohms
