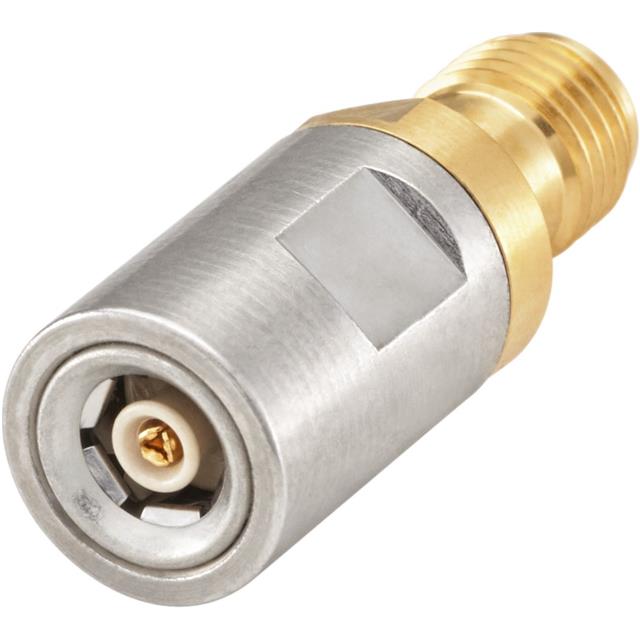

EBCK132-K00N5

Active

Rosenberger

COAX ADAPT SMA TO EBC

Search across all available documentation for this part.

Active

Rosenberger

COAX ADAPT SMA TO EBC

Technical Specifications

Parameters and characteristics for this part

Specification	EBCK132-K00N5

Adapter Series	SMA, EBC
Adapter Type	Jack to Jack
Body Material	Brass
Center Contact Material	Beryllium Copper, Phosphor Bronze
Center Contact Plating	Gold
Conversion Type	Between Series
Convert From (Adapter End)	Female Socket, SMA Jack
Convert To (Adapter End)	EBC Jack, Male Pin
Dielectric Material	Polytetrafluoroethylene (PTFE), Liquid Crystal Polymer (LCP)
Fastening Type	Threaded, Snap-On
Frequency - Max [Max]	8 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Style	Straight

Part	Center Contact Plating	Center Contact Material	Dielectric Material	Style	Convert To (Adapter End)	Fastening Type	Conversion Type	Body Material	Convert From (Adapter End)	Impedance	Frequency - Max [Max]	Mounting Type	Adapter Series	Adapter Type	Operating Temperature [Max]	Operating Temperature [Min]
Rosenberger EBCK132-K00N5	Gold	Beryllium Copper Phosphor Bronze	Liquid Crystal Polymer (LCP) Polytetrafluoroethylene (PTFE)	Straight	EBC Jack Male Pin	Snap-On Threaded	Between Series	Brass	Female Socket SMA Jack	50 Ohms	8 GHz	Free Hanging (In-Line)	EBC SMA	Jack to Jack	105 ░C	-55 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector SMA Jack, Female Socket To EBC Jack, Male Pin 50 Ohms
