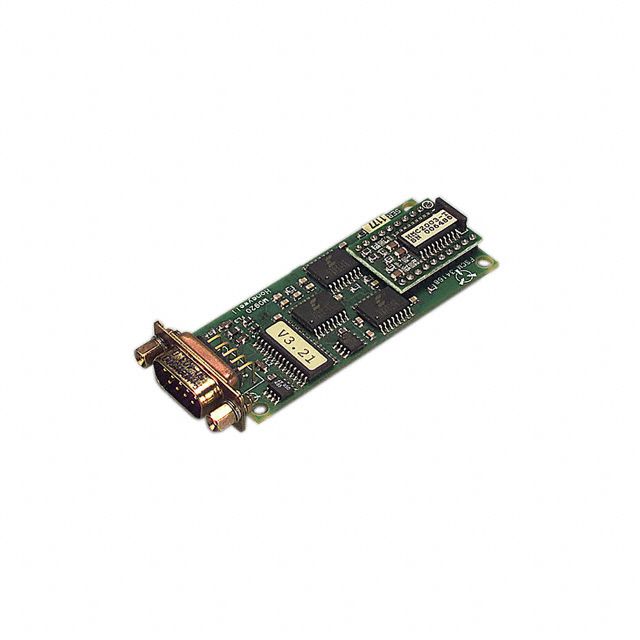

HMR2300-D00-485

Active

HONEYWELL / SENSOTEC

MAGNETOMETER RS485

Search across all available documentation for this part.

Active

HONEYWELL / SENSOTEC

MAGNETOMETER RS485

Technical Specifications

Parameters and characteristics for this part

Part	Type	Axis [z]	Axis [y]	Axis [x]	Operating Temperature [Max]	Operating Temperature [Min]	Interface	Measuring Range [Max]	Measuring Range [Min]	For Measuring [custom]	For Measuring [custom]	Package / Case	Resolution	Supplied Contents	Sensitivity	Sensor Type	Sensing Range [Min]	Sensing Range [Max]	Utilized IC / Part	Voltage - Supply [Max]	Voltage - Supply [Min]
HONEYWELL / SENSOTEC HMR2300-D21-485	Digital Magnetometer	Z	Y	X	85 °C	-40 °C	RS-485	2 Gauss	-2 Gauss	Direction of Magnetic Field	Strength	Module with Case	67 µGauss
HONEYWELL / SENSOTEC HMR2300-D21-232	Digital Magnetometer	Z	Y	X	85 °C	-40 °C	RS-232	2 Gauss	-2 Gauss	Direction of Magnetic Field	Strength	Module with Case	67 µGauss
HONEYWELL / SENSOTEC HMR2300-D00-485	Digital Magnetometer	Z	Y	X	85 °C	-40 °C	RS-485	2 Gauss	-2 Gauss	Direction of Magnetic Field	Strength	Module (No Case)	67 µGauss
HONEYWELL / SENSOTEC HMR2300-D21-485-DEMO							RS-485							Board(s) Cable(s) Power Supply	67 microgauss	Magnetic Magnetometer	-2 g	2 g	HMR2300	15 V	6.5 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1394.94

General part information

±2 Gauss Compass X, Y, Z 67µGauss Module (No Case)
