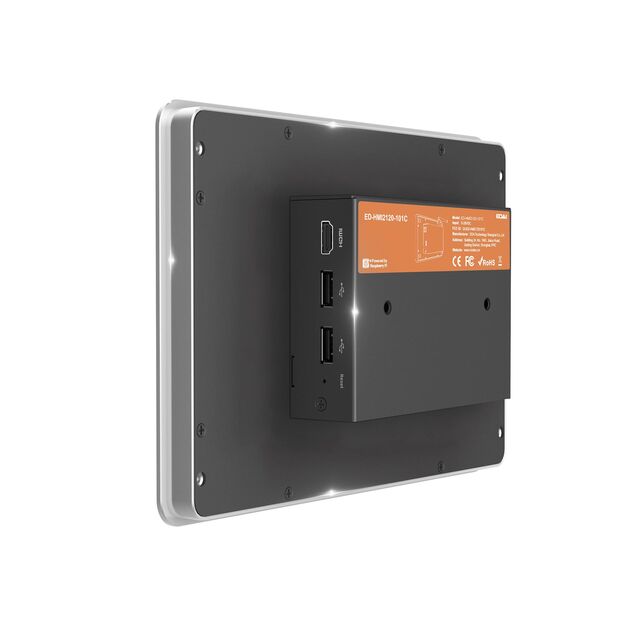

ED-HMI2120-101C-12324US

Active

EDATEC

SBC 1.5GHZ 4 CORE 2GB RAM

Search across all available documentation for this part.

Active

EDATEC

SBC 1.5GHZ 4 CORE 2GB RAM

Technical Specifications

Parameters and characteristics for this part

Specification	ED-HMI2120-101C-12324US

Cooling Type	Heat Plate
Core Processor	Raspberry Pi CM4 # CM4102032: ARM Cortex-A72
Ethernet	100 Mbps, 1000 Mbps, 10 Mbps
Form Factor	10.1 in
Number of Cores	4
Power (Watts)	20 W
RAM Capacity/Installed	2 GB
RS-232 (422, 485)	4
Speed	1.5 GHz
Storage Interface	eMMC
USB	USB 2.0 (2), Micro USB (1)
Video Outputs	HDMI
Watchdog Timer	True

Part	Storage Interface	Ethernet	Form Factor	Speed	RAM Capacity/Installed	Operating Temperature [Min]	Operating Temperature [Max]	Number of Cores	USB	Video Outputs	RS-232 (422, 485)	Power (Watts)	Cooling Type	Core Processor
EDATEC ED-HMI2120-101C-14084EU	eMMC	10 Mbps 100 Mbps 1000 Mbps	10.1 in	1.5 GHz	4 GB	-25 °C	60 °C	4	Micro USB (1) USB 2.0 (2)	HDMI	4	20 W	Heat Plate
EDATEC ED-HMI2120-101C-12084EU	eMMC	10 Mbps 100 Mbps 1000 Mbps	10.1 in	1.5 GHz	2 GB	-25 °C	60 °C	4	Micro USB (1) USB 2.0 (2)	HDMI	4	20 W	Heat Plate	Raspberry Pi CM4 # CM4102008: ARM Cortex-A72
EDATEC ED-HMI2120-101C-1208	eMMC	10 Mbps 100 Mbps 1000 Mbps	10.1 in	1.5 GHz	2 GB	-25 °C	60 °C	4	Micro USB (1) USB 2.0 (2)	HDMI	4	20 W	Heat Plate	Raspberry Pi CM4 # CM4102008: ARM Cortex-A72
EDATEC ED-HMI2120-101C-12324US	eMMC	10 Mbps 100 Mbps 1000 Mbps	10.1 in	1.5 GHz	2 GB			4	Micro USB (1) USB 2.0 (2)	HDMI	4	20 W	Heat Plate	Raspberry Pi CM4 # CM4102032: ARM Cortex-A72

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 385.00

General part information

Single Board Computer 1.5GHz 4 Core 2GB RAM Raspberry Pi CM4 # CM4102032: ARM Cortex-A72
