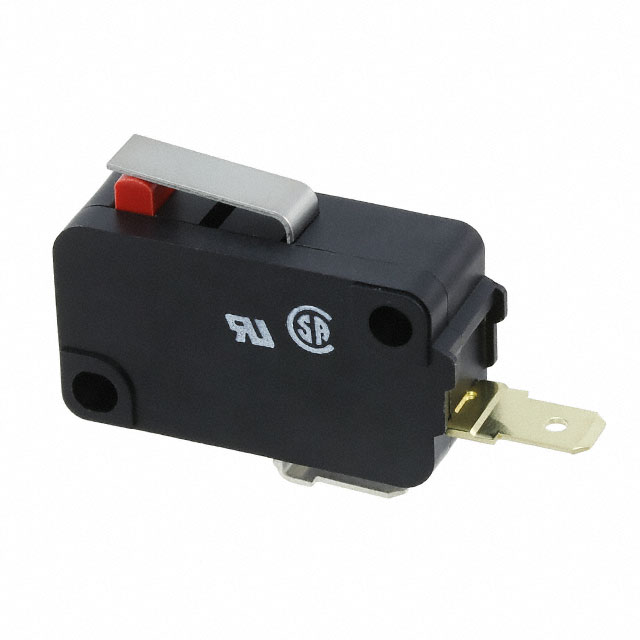

VX-011-3C23
ActiveOmron Electronics Inc-EMC Div
SWITCH SNP ACT SPST-NO 0.1A 125V
Deep-Dive with AI
Search across all available documentation for this part.
VX-011-3C23
ActiveOmron Electronics Inc-EMC Div
SWITCH SNP ACT SPST-NO 0.1A 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | VX-011-3C23 |
|---|---|
| Actuator Type | Lever, Straight |
| Circuit | SPST-NO |
| Current Rating (Amps) | 100 mA |
| Differential Travel | 0.5 mm |
| Differential Travel | 0.02 in |
| Electrical Life | 1000000 Cycles |
| Ingress Protection | IP40 |
| Mechanical Life | 10000000 Cycles |
| Mounting Type | Chassis Mount |
| Operating Force | 50 gf |
| Operating Position | 0.6 in |
| Operating Position | 15.2 mm |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -25 °C |
| Overtravel | 0.76 mm |
| Overtravel | 0.03 in |
| Pretravel | 0.063 in |
| Pretravel | 1.6 mm |
| Release Force | 4.079 gf |
| Switch Function | Off-Mom |
| Termination Style | Quick Connect - 0.187" (4.7mm) |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 100 | $ 3.15 | |
Description
General part information
VX-011 Series
Switch SPST-NO Chassis Mount
