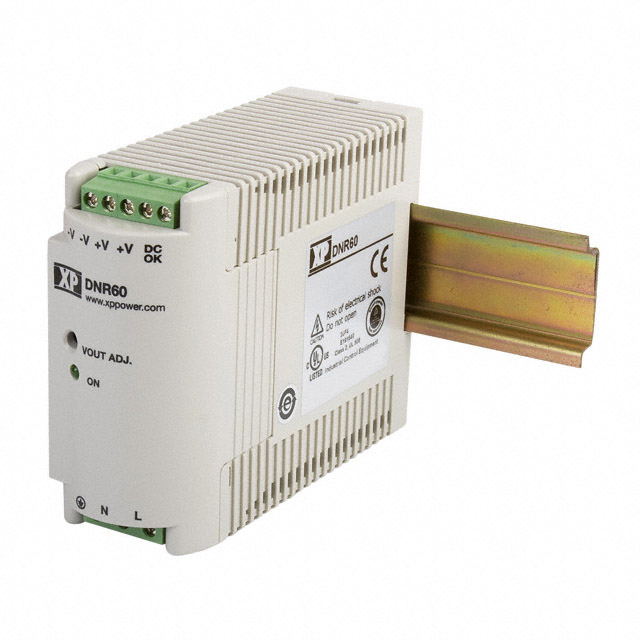

DNR60US24-S

Obsolete

XP POWER

AC/DC DIN RAIL SUPPLY 24V 60W

Search across all available documentation for this part.

Obsolete

XP POWER

AC/DC DIN RAIL SUPPLY 24V 60W

Technical Specifications

Parameters and characteristics for this part

Specification	DNR60US24-S

AC Voltage - Input [Max]	264 VAC
AC Voltage - Input [Min]	90 VAC
Applications	ITE (Commercial), Industrial, Hazardous Locations
Approval Agency	CE
Current - Output (Max) [Max]	2.5 A
DC Voltage - Input (Max) [Max]	375 V
DC Voltage - Input (Min) [Min]	90 V
Efficiency	89 %
Features	Adjustable Output, Universal Input
Input Type	AC or DC
Minimum Load Required	False
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Size / Dimension [x]	4.53 "
Size / Dimension [x]	115 mm
Size / Dimension [y]	40.5 mm
Size / Dimension [y]	1.59 "
Size / Dimension [z]	3.54 "
Size / Dimension [z]	90 mm
Standard Number	62368-1
Voltage - Isolation	3000 V
Voltage - Output 1	24 V

Part	Number of Outputs	Operating Temperature [Min]	Operating Temperature [Max]	Input Type	Voltage - Isolation	Approval Agency	Applications	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Current - Output (Max) [Max]	Voltage - Output 1	Features	Standard Number	AC Voltage - Input [Min]	AC Voltage - Input [Max]	DC Voltage - Input (Min) [Min]	Efficiency	DC Voltage - Input (Max) [Max]
XP POWER DNR60US12	1	-20 °C	70 °C	AC or DC	3000 V	CE	Hazardous Locations Industrial ITE (Commercial)	4.53 "	40.5 mm	115 mm	3.54 "	90 mm	1.59 "	5 A	12 V	Adjustable Output Universal Input	62368-1	90 VAC	264 VAC	90 V	86 %	375 V
XP POWER DNR60US24-S	1	-20 °C	70 °C	AC or DC	3000 V	CE	Hazardous Locations Industrial ITE (Commercial)	4.53 "	40.5 mm	115 mm	3.54 "	90 mm	1.59 "	2.5 A	24 V	Adjustable Output Universal Input	62368-1	90 VAC	264 VAC	90 V	89 %	375 V
XP POWER DNR60US24	1	-20 °C	70 °C	AC or DC	3000 V	CE	Hazardous Locations Industrial ITE (Commercial)	4.53 "	40.5 mm	115 mm	3.54 "	90 mm	1.59 "	2.5 A	24 V	Adjustable Output Universal Input	62368-1	90 VAC	264 VAC	90 V	89 %	375 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 50.90
