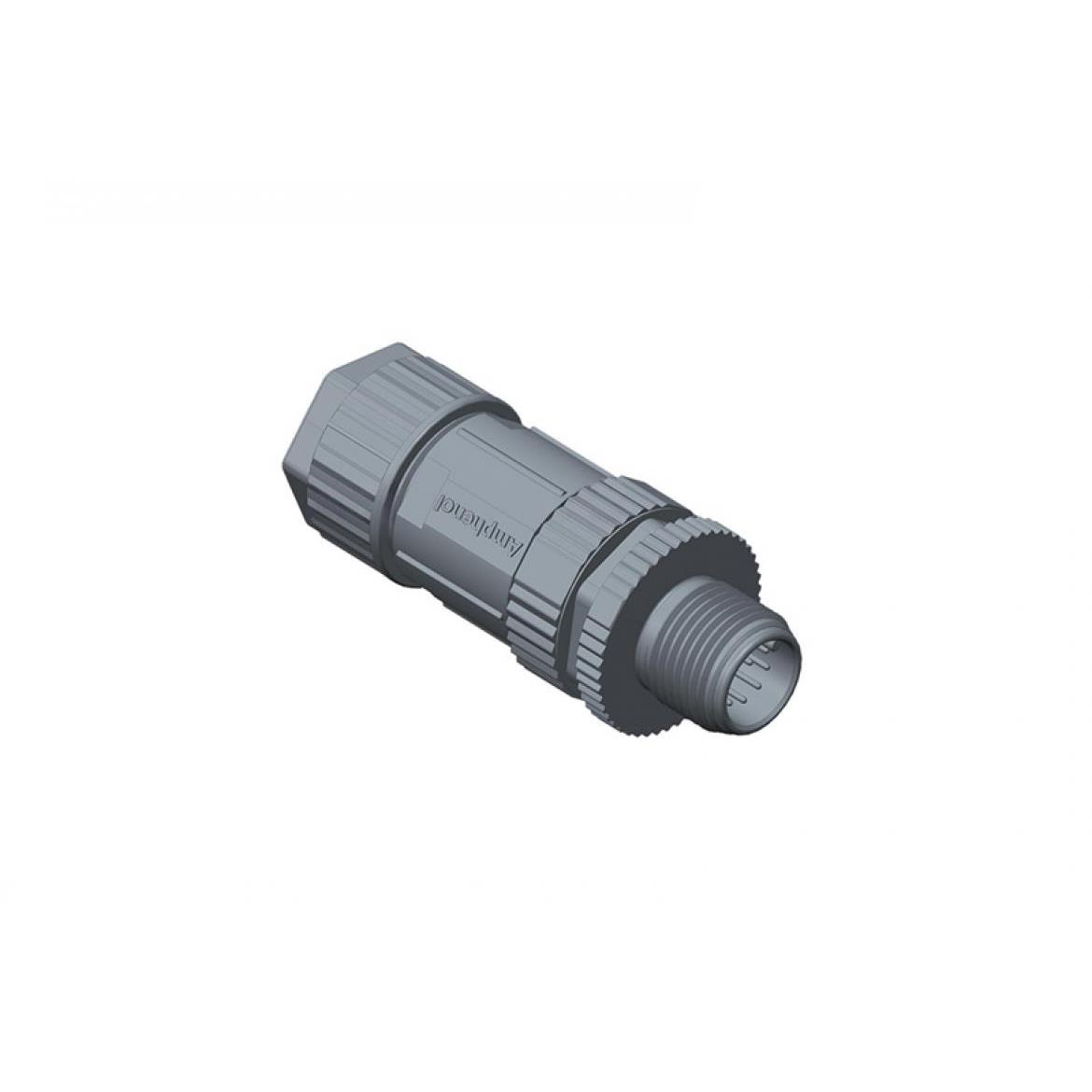

MSAP-12BMMA-SL7001
ActiveAmphenol LTW
M12 ASSY CONN
Deep-Dive with AI
Search across all available documentation for this part.
MSAP-12BMMA-SL7001
ActiveAmphenol LTW
M12 ASSY CONN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MSAP-12BMMA-SL7001 |
|---|---|
| Backshell Material, Plating | Polyamide (PA), Nylon |
| Cable Opening [Max] [custom] | 0.315 in |
| Cable Opening [Max] [custom] | 8 mm |
| Cable Opening [Min] [custom] | 4 mm |
| Cable Opening [Min] [custom] | 0.157 in |
| Color | Black |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 1.5 A |
| Features | Backshell |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Nylon, Polyamide (PA) |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 12 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Orientation | A |
| Primary Material | Plastic |
| Shell Size - Insert | M12-12 |
| Shielding | Unshielded |
| Voltage Rating | 30 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 10.22 | |
| 10 | $ 9.20 | |||
| 30 | $ 8.67 | |||
| 50 | $ 8.44 | |||
| 100 | $ 8.22 | |||
| 250 | $ 7.33 | |||
| 500 | $ 6.89 | |||
| 1000 | $ 6.09 | |||
Description
General part information
MSAP-12BMMA Series
12 Position Circular Connector Receptacle, Male Pins Solder Cup
Documents
Technical documentation and resources
No documents available
