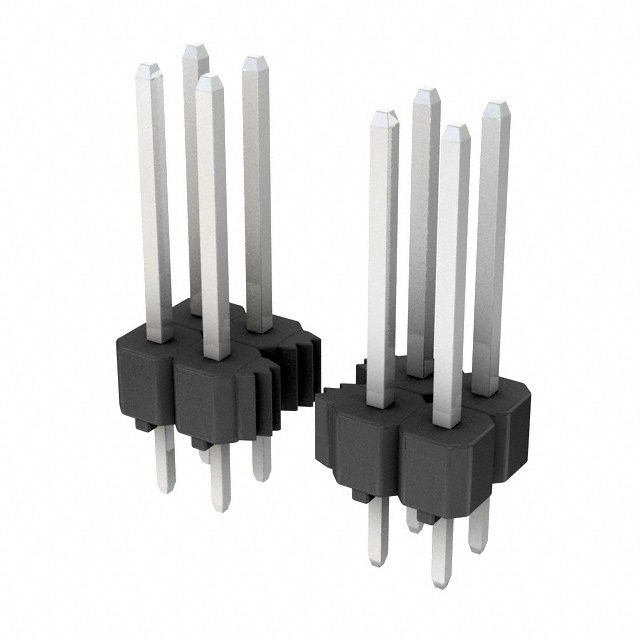

MDF7P-12DP-2.54DSA(55)

Obsolete

Hirose Electric USA, Inc.

CONN HEADER VERT 12POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MDF7P-12DP-2.54DSA(55)

Obsolete

Hirose Electric USA, Inc.

CONN HEADER VERT 12POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MDF7P-12DP-2.54DSA(55)

Connector Type	Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	1 µm
Contact Finish Thickness - Mating	39.4 µin
Contact Length - Mating	12.5 mm
Contact Length - Mating	0.492 in
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	12
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-35 °C
Overall Contact Length	18.03 mm
Overall Contact Length	0.71 in
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Termination	Solder
Voltage Rating	250 VDC

MDF7P Series

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Mating	Contact Length - Mating	Number of Rows	Shrouding	Mounting Type	Fastening Type	Insulation Material	Insulation Color	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Insulation Height	Insulation Height	Number of Positions Loaded	Overall Contact Length	Overall Contact Length	Contact Material	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Termination	Material Flammability Rating	Number of Positions	Contact Shape	Contact Length - Post	Contact Length - Post	Connector Type	Contact Finish - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish - Mating	Style
Hirose Electric USA, Inc. MDF7P-19P-2.54DSA(55)	1 µm	39.4 µin	12.5 mm	0.492 in	1	Unshrouded	Through Hole	Push-Pull	Polybutylene Terephthalate (PBT)	Black	0.1 in	2.54 mm	3 A	0.1 in	2.54 mm	All	18.03 mm	0.71 in	Brass	250 VDC	-35 °C	85 °C	Male Pin	Solder	UL94 V-0	19	Square	0.118 in	3 mm	Header	Tin
Hirose Electric USA, Inc. MDF7P-12DP-2.54DSA(55)	1 µm	39.4 µin	12.5 mm	0.492 in	2	Unshrouded	Through Hole	Push-Pull	Polybutylene Terephthalate (PBT)	Black	0.1 in	2.54 mm	3 A	0.1 in	2.54 mm	All	18.03 mm	0.71 in	Brass	250 VDC	-35 °C	85 °C	Male Pin	Solder	UL94 V-0	12	Square	0.118 in	3 mm	Header	Tin	2.54 mm	0.1 in
Hirose Electric USA, Inc. MDF7P-5P-2.54DSA(96)			12.5 mm	0.492 in	1	Unshrouded	Through Hole	Push-Pull	Polybutylene Terephthalate (PBT)	Black	0.1 in	2.54 mm	3 A	0.1 in	2.54 mm	All	18.03 mm	0.71 in	Brass	250 VAC	-35 °C	85 °C	Male Pin	Solder	UL94 V-0		Square	0.118 in	3 mm	Header				Gold	Board to Cable/Wire
Hirose Electric USA, Inc. MDF7P-40DP-2.54DSA	0.203 Ám	8 Áin	12.5 mm	0.492 in	2	Unshrouded	Through Hole	Push-Pull	Polybutylene Terephthalate (PBT)	Black	0.1 in	2.54 mm	3 A	0.1 in	2.54 mm	All	18.03 mm	0.71 in	Brass	250 VDC	-35 °C	85 °C	Male Pin	Solder	UL94 V-0	40	Square	0.118 in	3 mm	Header		2.54 mm	0.1 in	Gold
Hirose Electric USA, Inc. MDF7P-25P-2.54DSA(95)			12.5 mm	0.492 in	1	Unshrouded	Through Hole	Push-Pull	Polybutylene Terephthalate (PBT)	Black	0.1 in	2.54 mm	3 A	0.1 in	2.54 mm	All	18.03 mm	0.71 in	Brass	250 VAC	-35 °C	85 °C	Male Pin	Solder	UL94 V-0		Square	0.118 in	3 mm	Header	Tin				Board to Cable/Wire
Hirose Electric USA, Inc. MDF7P-30DP-2.54DSA(84)			12.5 mm	0.492 in	2	Unshrouded	Through Hole	Push-Pull	Polybutylene Terephthalate (PBT)	Black	0.1 in	2.54 mm	3 A	0.1 in	2.54 mm	All	18.03 mm	0.71 in	Brass	250 VAC	-35 °C	85 °C	Male Pin	Solder	UL94 V-0	30	Square	0.118 in	3 mm	Header		2.54 mm	0.1 in		Board to Cable/Wire
Hirose Electric USA, Inc. MDF7P-3P-2.54DSA(96)			12.5 mm	0.492 in	1	Unshrouded	Through Hole	Push-Pull	Polybutylene Terephthalate (PBT)	Black	0.1 in	2.54 mm	3 A	0.1 in	2.54 mm	All	18.03 mm	0.71 in	Brass	250 VAC	-35 °C	85 °C	Male Pin	Solder	UL94 V-0		Square	0.118 in	3 mm	Header				Gold	Board to Cable/Wire
Hirose Electric USA, Inc. MDF7P-30DP-2.54DSA(14)
Hirose Electric USA, Inc. MDF7P-22DP-2.54DSA(95)			12.5 mm	0.492 in	2	Unshrouded	Through Hole	Push-Pull	Polybutylene Terephthalate (PBT)	Black	0.1 in	2.54 mm	3 A	0.1 in	2.54 mm	All	18.03 mm	0.71 in	Brass	250 VAC	-35 °C	85 °C	Male Pin	Solder	UL94 V-0	22 positions	Square	0.118 in	3 mm	Header	Tin	2.54 mm	0.1 in		Board to Cable/Wire
Hirose Electric USA, Inc. MDF7P-10P-2.54DSA(95)			12.5 mm	0.492 in	1	Unshrouded	Through Hole	Push-Pull	Polybutylene Terephthalate (PBT)	Black	0.1 in	2.54 mm	3 A	0.1 in	2.54 mm	All	18.03 mm	0.71 in	Brass	250 VAC	-35 °C	85 °C	Male Pin	Solder	UL94 V-0	10	Square	0.118 in	3 mm	Header	Tin				Board to Cable/Wire

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

MDF7P Series

Connector Header Through Hole 12 position 0.100" (2.54mm)
