WFL2-2LPHF6-04N1TV-A-800

Active

Hirose Electric USA, Inc.

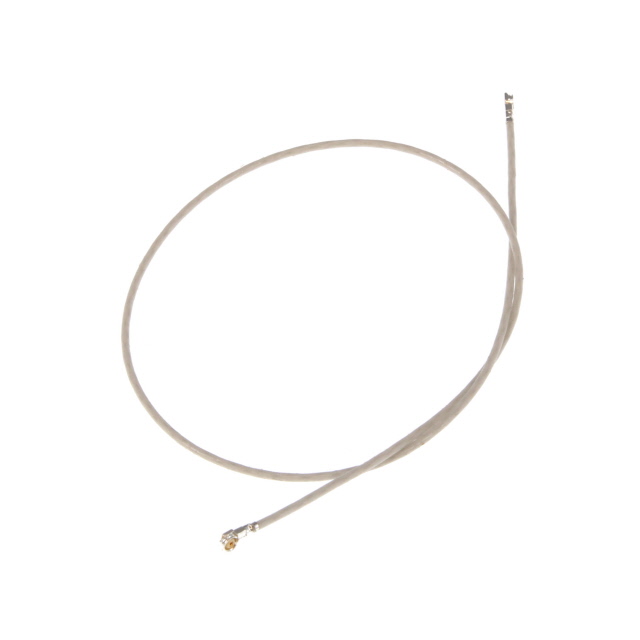

CBL ASSY W.FL2 PLUG-PLUG 31.5"

Deep-Dive with AI

Search across all available documentation for this part.

WFL2-2LPHF6-04N1TV-A-800

Active

Hirose Electric USA, Inc.

CBL ASSY W.FL2 PLUG-PLUG 31.5"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	WFL2-2LPHF6-04N1TV-A-800

1st Connector	Right Angle, W.FL2 Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Impedance	50 Ohms
Cable Type	Coaxial Cable
Cable Type [diameter]	0.81 mm
Color	White
Frequency - Max [Max]	6000 MHz
Length [x]	31.5 in
Length [x]	800 mm
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-40 °C
Style	W.FL2 to W.FL2

WFL2 Series

Part	Length [x]	Length [x]	Frequency - Max [Max]	Cable Impedance	Style	1st Connector	2nd Contact Gender	1st Contact Gender	2nd Connector Mounting Type	1st Connector Mounting Type	Color	Cable Type	Cable Type [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Length	Length	Overall Impedance
Hirose Electric USA, Inc. WFL2-2LPHF6-04N2TV-A-100	0.1 m	3.937 in	6000 MHz	50 Ohms	W.FL2 to W.FL2	Right Angle W.FL2 Plug	Female	Female	Free Hanging (In-Line)	Free Hanging (In-Line)	Black	Coaxial Cable	0.81 mm	90 °C	-40 °C
Hirose Electric USA, Inc. WFL2-2LPHF6-04N2TV-A-200			6000 MHz	50 Ohms	W.FL2 to W.FL2	Right Angle W.FL2 Plug	Female	Female	Free Hanging (In-Line)	Free Hanging (In-Line)	Black	Coaxial Cable	0.81 mm	90 °C	-40 °C	7.874 in	200 mm
Hirose Electric USA, Inc. WFL2-2LPHF6-04N1TV-A-50	50 mm	1.969 in	6000 MHz		W.FL2 to W.FL2	Right Angle W.FL2 Plug	Female	Female	Free Hanging (In-Line)	Free Hanging (In-Line)	White	Coaxial Cable	0.81 mm	90 °C	-40 °C			50 Ohms
Hirose Electric USA, Inc. WFL2-2LPHF6-04N1TV-A-500			6000 MHz		W.FL2 to W.FL2	Right Angle W.FL2 Plug	Female	Female	Free Hanging (In-Line)	Free Hanging (In-Line)	White	Coaxial Cable	0.81 mm	90 °C	-40 °C	19.69 "	50 cm	50 Ohms
Hirose Electric USA, Inc. WFL2-2LPHF6-04N1TV-A-40			6000 MHz	50 Ohms	W.FL2 to W.FL2	Right Angle W.FL2 Plug	Female	Female	Free Hanging (In-Line)	Free Hanging (In-Line)	White	Coaxial Cable	0.81 mm	90 °C	-40 °C
Hirose Electric USA, Inc. WFL2-2LPHF6-04N1TV-A-400			6000 MHz		W.FL2 to W.FL2	Right Angle W.FL2 Plug	Female	Female	Free Hanging (In-Line)	Free Hanging (In-Line)	White	Coaxial Cable	0.81 mm	90 °C	-40 °C	15.75 "	400 mm	50 Ohms
Hirose Electric USA, Inc. WFL2-2LPHF6-04N1TV-A-70			6000 MHz	50 Ohms	W.FL2 to W.FL2	Right Angle W.FL2 Plug	Female	Female	Free Hanging (In-Line)	Free Hanging (In-Line)	White	Coaxial Cable	0.81 mm	90 °C	-40 °C	2.756 "	70 mm
Hirose Electric USA, Inc. WFL2-2LPHF6-04N1TV-A-200			6000 MHz		W.FL2 to W.FL2	Right Angle W.FL2 Plug	Female	Female	Free Hanging (In-Line)	Free Hanging (In-Line)	White	Coaxial Cable	0.81 mm	90 °C	-40 °C	7.874 in	200 mm	50 Ohms
Hirose Electric USA, Inc. WFL2-2LPHF6-04N2TV-A-150	150 mm	5.906 "	6000 MHz		W.FL2 to W.FL2	Right Angle W.FL2 Plug	Female	Female	Free Hanging (In-Line)	Free Hanging (In-Line)	Black	Coaxial Cable	0.81 mm	90 °C	-40 °C			50 Ohms
Hirose Electric USA, Inc. WFL2-2LPHF6-04N1TV-A-800	800 mm	31.5 in	6000 MHz	50 Ohms	W.FL2 to W.FL2	Right Angle W.FL2 Plug	Female	Female	Free Hanging (In-Line)	Free Hanging (In-Line)	White	Coaxial Cable	0.81 mm	90 °C	-40 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

WFL2 Series

Cable Assembly Coaxial W.FL2 to W.FL2 0.81mm OD Coaxial Cable 31.50" (800.00mm)

Documents

Technical documentation and resources

No documents available
