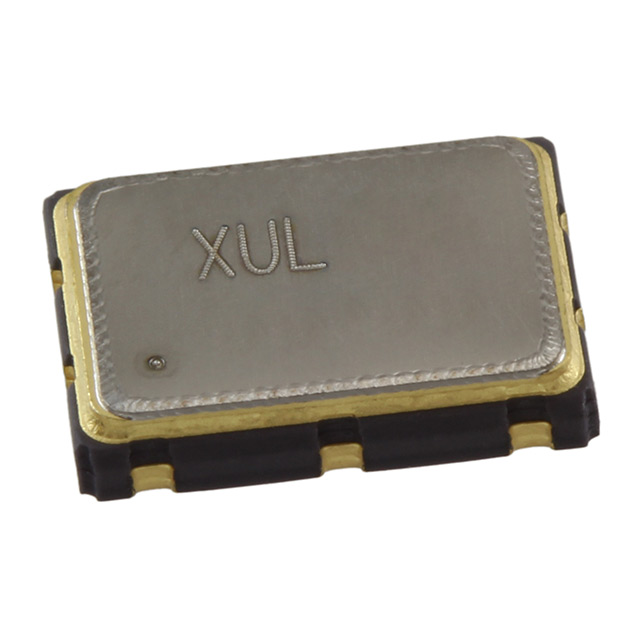

XUL736150.000JU6I
ActiveRenesas Electronics Corporation
XTAL OSC XO 150.0000MHZ LVDS SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XUL736150.000JU6I
ActiveRenesas Electronics Corporation
XTAL OSC XO 150.0000MHZ LVDS SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XUL736150.000JU6I |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Max) [Max] | 97 mA |
| Frequency | 150 MHz |
| Frequency Stability | 25 ppm |
| Function | Enable/Disable |
| Height - Seated (Max) [Max] | 1.45 mm |
| Height - Seated (Max) [Max] | 0.057 in |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output | LVDS |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension [x] | 7 mm |
| Size / Dimension [x] | 0.276 " |
| Size / Dimension [y] | 5 mm |
| Size / Dimension [y] | 0.197 " |
| Type | XO (Standard) |
| Voltage - Supply | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Strip | 1 | $ 5.24 | |
| 10 | $ 4.96 | |||
| 50 | $ 4.69 | |||
| 100 | $ 4.41 | |||
| 500 | $ 4.27 | |||
| 1000 | $ 3.67 | |||
| 2500 | $ 3.45 | |||
Description
General part information
XUL736 Series
150 MHz XO (Standard) LVDS Oscillator 3.3V Enable/Disable 4-SMD, No Lead
