IMSA-11501S-35B-GFN1

Active

IRISO USA Inc.

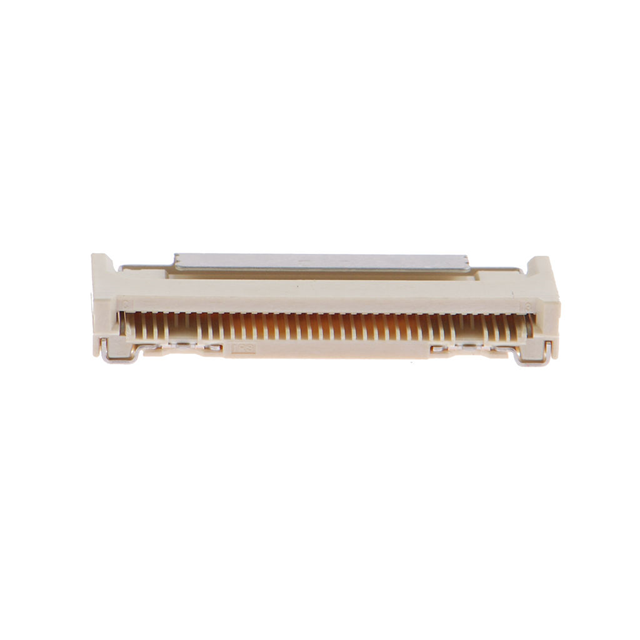

CONN FFC BOTTOM 35POS 0.5MM R/A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

IMSA-11501S-35B-GFN1

Active

IRISO USA Inc.

CONN FFC BOTTOM 35POS 0.5MM R/A

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	IMSA-11501S-35B-GFN1

Cable End Type	Notched
Connector/Contact Type	Contacts, Bottom
Contact Finish	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	0.5 A
Features	Solder Retention
FFC, FCB Thickness	0.3 mm
Flat Flex Type	FPC, FFC
Height Above Board [z]	3.4 mm
Height Above Board [z]	0.134 in
Housing Color	Black
Housing Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	35
Pitch [x]	0.5 mm
Pitch [x]	0.02 in
Termination	Solder
Voltage Rating	50 V

IMSA-115 Series

Part	Pitch [x]	Pitch [x]	Contact Finish	Contact Material	Housing Material	Housing Color	Material Flammability Rating	Termination	Flat Flex Type	Current Rating (Amps)	Connector/Contact Type	Voltage Rating	Height Above Board [z]	Height Above Board [z]	Features	Mounting Type	Cable End Type	FFC, FCB Thickness	Number of Positions
IRISO USA Inc. IMSA-11501S-32B-GFN1	0.5 mm	0.02 in	Gold	Copper Alloy	Liquid Crystal Polymer (LCP)	Black	UL94 V-0	Solder	FFC FPC	0.5 A	Contacts Bottom	50 V	3.4 mm	0.134 in	Solder Retention	Surface Mount Right Angle	Notched	0.3 mm
IRISO USA Inc. IMSA-11501S-60A-GFN1	0.5 mm	0.02 in	Gold	Copper Alloy	Liquid Crystal Polymer (LCP)		UL94 V-0	Solder	FFC FPC	0.5 A	Contacts Bottom	50 V	3.4 mm	0.134 in	Solder Retention	Surface Mount Right Angle	Notched	0.3 mm	60
IRISO USA Inc. IMSA-11501S-25B-GFN1	0.5 mm	0.02 in	Gold	Copper Alloy	Liquid Crystal Polymer (LCP)	Black	UL94 V-0	Solder	FFC FPC	0.5 A	Contacts Bottom	50 V	3.4 mm	0.134 in	Solder Retention	Surface Mount Right Angle	Notched	0.3 mm
IRISO USA Inc. IMSA-11501S-15C-GFN1	0.5 mm	0.02 in	Gold	Copper Alloy	Liquid Crystal Polymer (LCP)		UL94 V-0	Solder	FFC FPC	0.5 A	Contacts Bottom	50 V	3.4 mm	0.134 in	Solder Retention	Surface Mount Right Angle	Notched	0.3 mm	15
IRISO USA Inc. IMSA-11501S-60B-GFN1	0.5 mm	0.02 in	Gold	Copper Alloy	Liquid Crystal Polymer (LCP)	Black	UL94 V-0	Solder	FFC FPC	0.5 A	Contacts Bottom	50 V	3.4 mm	0.134 in	Solder Retention	Surface Mount Right Angle	Notched	0.3 mm	60
IRISO USA Inc. IMSA-11501S-32A-GFN1	0.5 mm	0.02 in	Gold	Copper Alloy	Liquid Crystal Polymer (LCP)		UL94 V-0	Solder	FFC FPC	0.5 A	Contacts Bottom	50 V	3.4 mm	0.134 in	Solder Retention	Surface Mount Right Angle	Notched	0.3 mm
IRISO USA Inc. IMSA-11501S-08D-GFN1	0.5 mm	0.02 in	Gold	Copper Alloy	Liquid Crystal Polymer (LCP)		UL94 V-0	Solder	FFC FPC	0.5 A	Contacts Bottom	50 V	3.4 mm	0.134 in	Solder Retention	Surface Mount Right Angle	Notched	0.3 mm	8
IRISO USA Inc. IMSA-11501S-08C-GFN1	0.5 mm	0.02 in	Gold	Copper Alloy	Liquid Crystal Polymer (LCP)		UL94 V-0	Solder	FFC FPC	0.5 A	Contacts Bottom	50 V	3.4 mm	0.134 in	Solder Retention	Surface Mount Right Angle	Notched	0.3 mm	8
IRISO USA Inc. IMSA-11501S-45A-GFN1	0.5 mm	0.02 in	Gold	Copper Alloy	Liquid Crystal Polymer (LCP)		UL94 V-0	Solder	FFC FPC	0.5 A	Contacts Bottom	50 V	3.4 mm	0.134 in	Solder Retention	Surface Mount Right Angle	Notched	0.3 mm	45
IRISO USA Inc. IMSA-11501S-35B-GFN1	0.5 mm	0.02 in	Gold	Copper Alloy	Liquid Crystal Polymer (LCP)	Black	UL94 V-0	Solder	FFC FPC	0.5 A	Contacts Bottom	50 V	3.4 mm	0.134 in	Solder Retention	Surface Mount Right Angle	Notched	0.3 mm	35

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.91
		10	$ 1.62
		25	$ 1.52
		50	$ 1.44
		100	$ 1.38
		250	$ 1.29
		500	$ 1.23
	Tape & Reel (TR)	1500	$ 1.14
		3000	$ 1.08
		4500	$ 1.05
		7500	$ 1.01

Description

General part information

IMSA-115 Series

35 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
