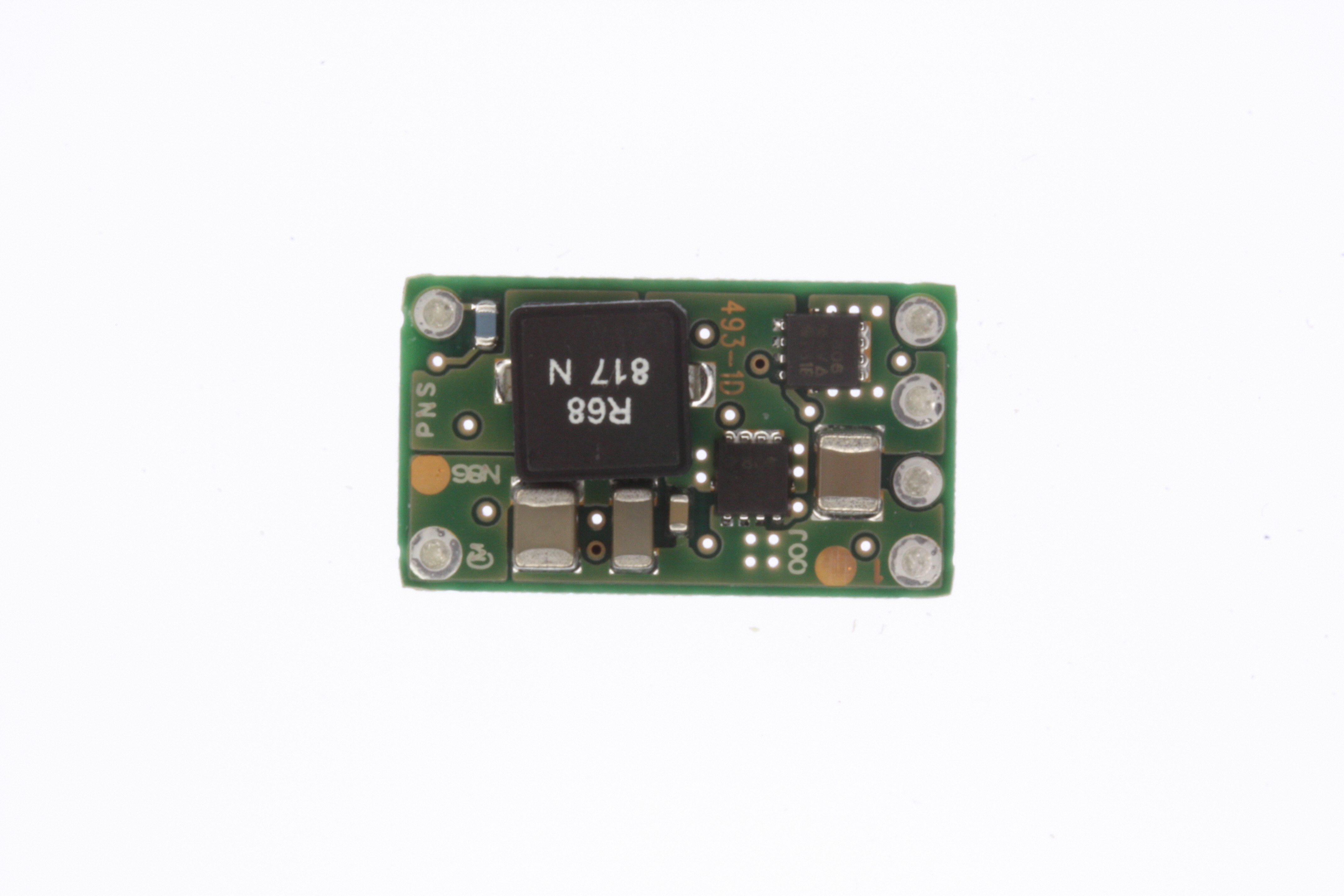

MPDTH03050WAH

Obsolete

Murata Power Solutions Inc.

DC-DC REGULATED POWER SUPPLY MODULE, 1 OUTPUT, 15W, HYBRID, PACKAGE-6

Search across all available documentation for this part.

Obsolete

Murata Power Solutions Inc.

DC-DC REGULATED POWER SUPPLY MODULE, 1 OUTPUT, 15W, HYBRID, PACKAGE-6

Technical Specifications

Parameters and characteristics for this part

Part	Number of Outputs	Voltage - Input (Max) [Max]	Features	Power (Watts)	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Efficiency	Voltage - Input (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max) [Max]	Applications	Package / Case	Mounting Type	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Type	Size / Dimension [y]	Size / Dimension [z]
Murata Power Solutions Inc. MPDTH03050WAS	1	3.65 V	Remote On/Off SCP UVLO	15 W	2.5 V	0.8 V	94 %	2.95 V	85 °C	-40 °C	6 A	ITE (Commercial)	6-SMD Module	Surface Mount	12.6 mm	9.1 mm	22.1 mm	0.49 in	0.36 in	0.87 in	Non-Isolated PoL Module
Murata Power Solutions Inc. MPDTH03050WAH	1	3.65 V		15 W	2.5 V	0.8 V	94 %	2.95 V	85 °C	-40 °C	6 A	ITE (Commercial)	6-DIP Module	Through Hole			22.1 mm	0.49 in	0.33 in	0.87 in	Non-Isolated PoL Module	12.6 mm	8.5 mm
Murata Power Solutions Inc. MPDTH03010WAH	1	3.65 V		37 W	2.5 V	0.8 V	93 %	2.95 V	85 °C	-40 °C	15 A	ITE (Commercial)	10-DIP Module	Through Hole			34.8 mm	0.62 "	0.35 "	1.37 in	Non-Isolated PoL Module	15.8 mm	9 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Non-Isolated PoL Module DC DC Converter 1 Output 0.8 ~ 2.5V 6A 2.95V - 3.65V Input
