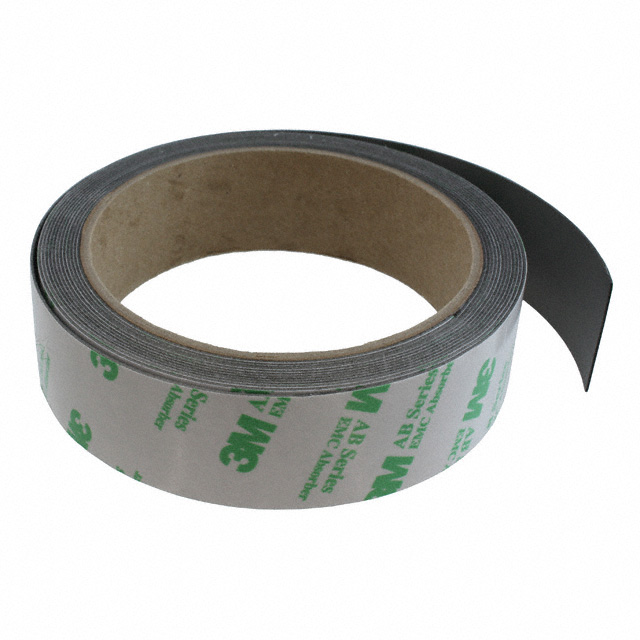

1.03-4-AB5050
Obsolete3M (TC)
RF EMI ABSORBING TAPE 12'X1.03"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1.03-4-AB5050
Obsolete3M (TC)
RF EMI ABSORBING TAPE 12'X1.03"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1.03-4-AB5050 |
|---|---|
| Adhesive | Conductive, Single Sided |
| Length | 12 ft |
| Length | 3.65 m |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Thickness - Overall | 0.022 in |
| Thickness - Overall | 0.55 mm |
| Type | Absorbing Tape |
| Width | 26.16 mm |
| Width [x] | 1.03 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
1.03-4 Series
RF EMI Absorbing Tape AB-5000 Conductive, Single Sided 1.030" (26.16mm) X 12.000' (3.65m) X 0.022" (0.55mm)
