1424497

Active

Phoenix Contact

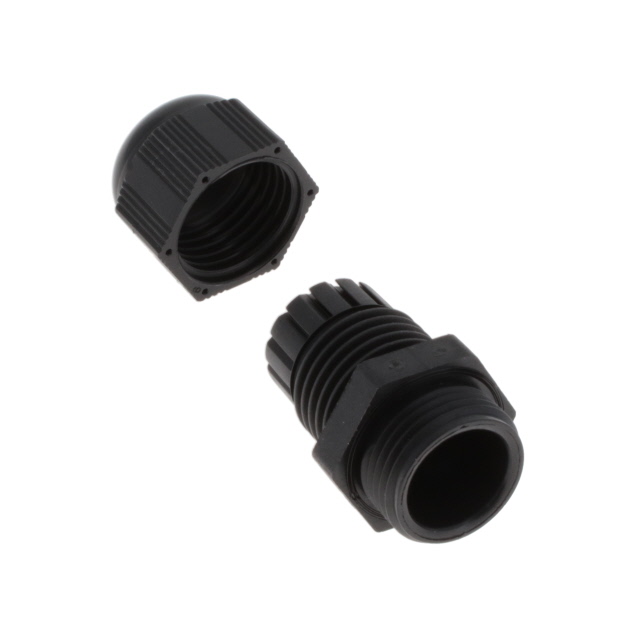

CABLE GLAND 5-10MM PG11 POLYAMID

Search across all available documentation for this part.

Active

Phoenix Contact

CABLE GLAND 5-10MM PG11 POLYAMID

Technical Specifications

Parameters and characteristics for this part

Specification	1424497

Color	Black
Includes	Seal
Ingress Protection	IP68 - Dust Tight, Waterproof
Material	Polyamide (PA), Nylon
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	0.394 "
Outside Cable Diameter (Max) [Max] [diameter]	10 mm
Outside Cable Diameter (Min) [Min]	5 mm
Outside Cable Diameter (Min) [Min]	0.197 in
Thread Length	8 mm
Thread Length	0.315 in
Thread Size	PG11
Type	Cable Gland

Part	Thread Size	Includes	Type	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Material	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Thread Length	Thread Length	Ingress Protection	Color
Phoenix Contact 1411142	PG11	Seal	Cable Gland	0.394 "	10 mm	100 °C	-40 °C	Polyamide (PA) Nylon	5 mm	0.197 in	8 mm	0.315 in	IP66/IP68	Gray
Phoenix Contact 1424497	PG11	Seal	Cable Gland	0.394 "	10 mm	100 °C	-40 °C	Polyamide (PA) Nylon	5 mm	0.197 in	8 mm	0.315 in	IP68 - Dust Tight Waterproof	Black
Phoenix Contact 1424487	PG11	Seal	Cable Gland	0.394 "	10 mm	100 °C	-40 °C	Polyamide (PA) Nylon	5 mm	0.197 in	8 mm	0.315 in	IP68 - Dust Tight Waterproof	Gray

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Polyamide (PA), Nylon PG11 Black
