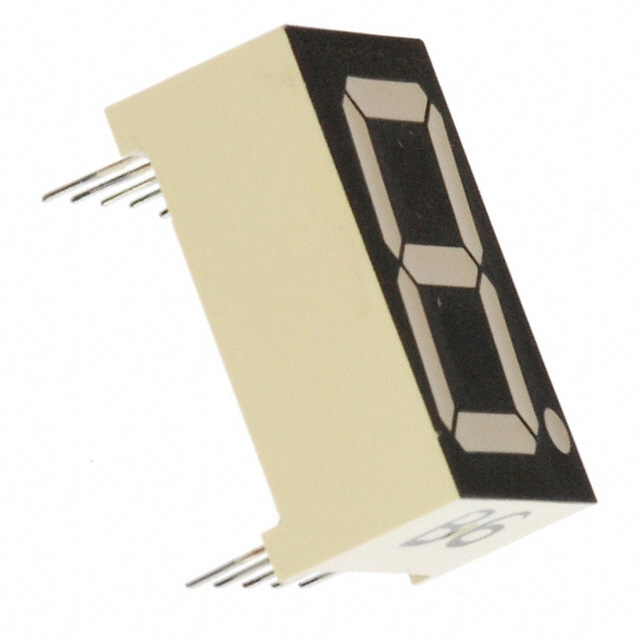

NAR161B
ObsoleteStanley Electric Co
DISPLAY 7-SEG 0.6" SGL RED 10DIP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NAR161B
ObsoleteStanley Electric Co
DISPLAY 7-SEG 0.6" SGL RED 10DIP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NAR161B |
|---|---|
| Color | Red |
| Common Pin | Common Anode |
| Current - Test | 20 mA |
| Digit/Alpha Size [x] | 0.6 in |
| Digit/Alpha Size [x] | 15.24 mm |
| Display Type | 7-Segment |
| Millicandela Rating | 12 mcd |
| Number of Characters [custom] | 1 |
| Package / Case | 0.6 in |
| Package / Case | 15.24 mm |
| Package / Case | 10-DIP |
| Size / Dimension [x] | 19 mm |
| Size / Dimension [x] | 0.748 in |
| Size / Dimension [y] | 0.492 " |
| Size / Dimension [y] | 12.5 mm |
| Size / Dimension [z] | 0.315 " |
| Size / Dimension [z] | 8 mm |
| Voltage - Forward (Vf) (Typ) | 1.7 V |
| Wavelength - Peak | 660 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
NAR161 Series
Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Anode 1.7V 20mA 0.748" H x 0.492" W x 0.315" D (19.00mm x 12.50mm x 8.00mm) 10-DIP (0.600", 15.24mm)
