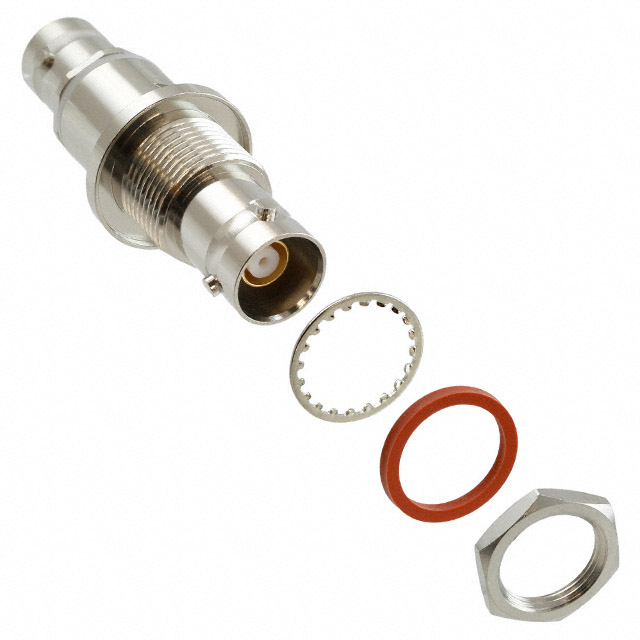

ADBJ20-E1-BJ79

Active

Cinch Connectivity Solutions Trompeter

CONN ADAPT BNC JACK TO TRB JACK

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions Trompeter

CONN ADAPT BNC JACK TO TRB JACK

Technical Specifications

Parameters and characteristics for this part

Specification	ADBJ20-E1-BJ79

Adapter Series	BNC to TRB Twinaxial/Triaxial
Adapter Type	Jack to Jack
Body Finish	Nickel
Center Gender	Female to Female
Conversion Type	Between Series
Convert From (Adapter End)	BNC Jack, Female Socket
Convert To (Adapter End)	TRB Twinaxial/Triaxial (Concentric) Jack, Female Socket
Fastening Type	Bayonet Lock
Features	Three Lug
Impedance	50 Ohms
Mounting Feature	Bulkhead
Style	Straight

Part	Mounting Feature	Conversion Type	Adapter Type	Convert To (Adapter End)	Adapter Series	Fastening Type	Impedance	Style	Body Finish	Convert From (Adapter End)	Center Gender	Features	Mounting Type
Cinch Connectivity Solutions Trompeter ADBJ20-E1-BJ379	Bulkhead	Between Series	Jack to Jack	TRT Twinaxial/Triaxial Jack Female Socket	BNC to TRT Twinaxial/Triaxial	Bayonet Lock Threaded	50 Ohms	Straight	Nickel	BNC Jack Female Socket	Female to Female
Cinch Connectivity Solutions Trompeter ADBJ20-E1-BJ79	Bulkhead	Between Series	Jack to Jack	TRB Twinaxial/Triaxial (Concentric) Jack Female Socket	BNC to TRB Twinaxial/Triaxial	Bayonet Lock	50 Ohms	Straight	Nickel	BNC Jack Female Socket	Female to Female	Three Lug
Cinch Connectivity Solutions Trompeter ADBJ20-E1-PL75		Between Series	Plug to Jack		BNC to TRB Twinaxial/Triaxial	Bayonet Lock	50 Ohms	Straight	Nickel	BNC Jack Female Socket		Three Lug	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector BNC Jack, Female Socket To TRB Twinaxial/Triaxial (Concentric) Jack, Female Socket 50 Ohms
