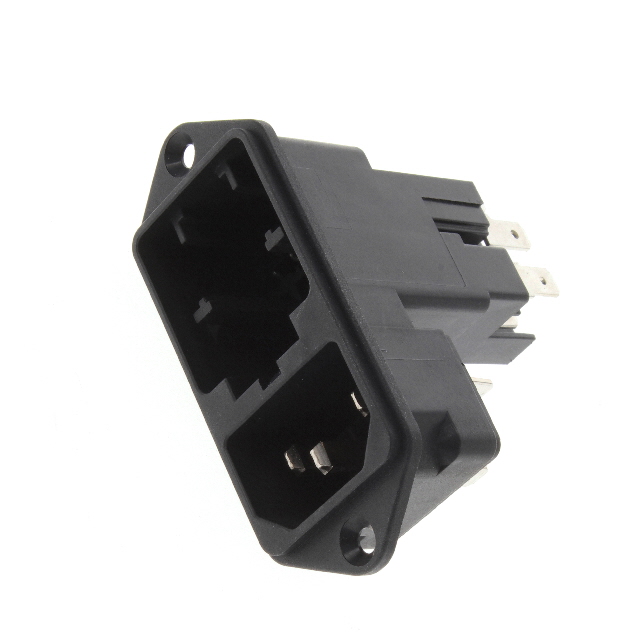

KE15.1100.151

Active

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C14 PNL

Search across all available documentation for this part.

Active

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C14 PNL

Technical Specifications

Parameters and characteristics for this part

Specification	KE15.1100.151

Accomodates a Fuse	True
Approval Agency	cURus, ENEC
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	10 A
Features	Voltage Selector
Filter Type	Unfiltered - Commercial
Fuse Holder, Drawer	Drawer Sold Separate
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Flange
Panel Cutout Dimensions [x]	27.5 mm
Panel Cutout Dimensions [y]	52.5 mm
Termination	0.189 ", 4.8 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet	250 VAC

Part	Fuse Holder, Drawer	Material Flammability Rating	Ingress Protection	Connector Style	Voltage Rating - Appliance Inlet	Termination	Termination	Panel Thickness [custom]	Panel Thickness [custom]	Features	Mounting Type	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Approval Agency	Connector Type	Filter Type	Current Rating - Appliance Inlet	Accomodates a Fuse
SCHURTER Inc. KE15.1100.105	Drawer Sold Separate	UL94 V-0	IP40	IEC 320-C14	250 VAC	0.189 " 4.8 mm	Quick Connect	0.059 in	1.5 mm	Voltage Selector	Panel Mount Snap-In	27.5 mm	52.5 mm	CSA ENEC UL	Receptacle Male Blades - Module	Unfiltered - Commercial	10 A
SCHURTER Inc. KE15.1100.151	Drawer Sold Separate	UL94 V-0	IP40	IEC 320-C14	250 VAC	0.189 " 4.8 mm	Quick Connect			Voltage Selector	Flange Panel Mount	27.5 mm	52.5 mm	cURus ENEC	Receptacle Male Blades - Module	Unfiltered - Commercial	10 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Flange
