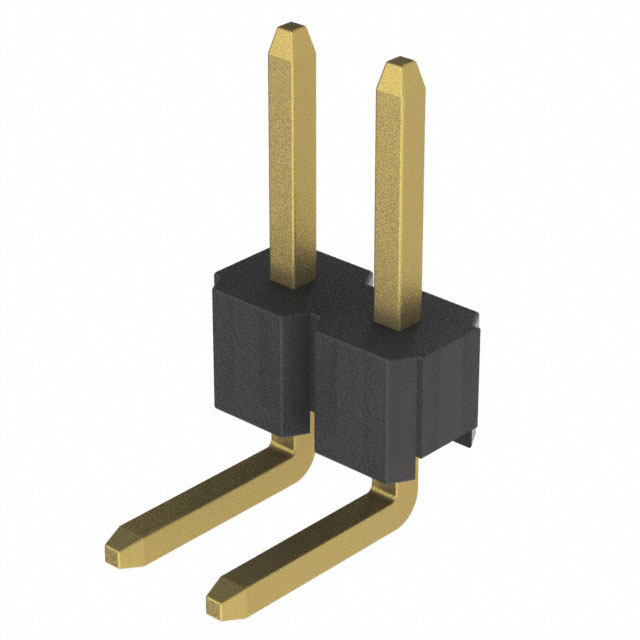

2PH1R-02-UA

Active

Adam Tech

CONN HEADER R/A 2POS 2MM

Deep-Dive with AI

DocumentsDatasheet ECBT2-E224053 Data Connectors, Signal, Control, Power Applications

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	2PH1R-02-UA

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Length - Mating	0.154 in
Contact Length - Mating	3.91 mm
Contact Length - Post	2.79 mm
Contact Length - Post [x]	0.11 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.079 in
Insulation Height	2 mm
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Shrouding	Unshrouded
Termination	Solder
Voltage Rating	250 VAC

2PH1R Series

Part	Pitch - Mating [x]	Pitch - Mating [x]	Number of Positions	Contact Length - Post [x]	Contact Length - Post	Mounting Type	Contact Type	Contact Material	Insulation Color	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Insulation Height	Insulation Height	Insulation Material	Material Flammability Rating	Shrouding	Contact Finish - Post	Fastening Type	Voltage Rating	Contact Shape	Contact Length - Mating	Contact Length - Mating	Contact Finish Thickness - Post	Number of Positions Loaded	Contact Finish - Mating	Termination	Contact Finish Thickness - Mating	Number of Rows
Adam Tech 2PH1R-11-UA	0.079 in	2 mm	11	0.11 in	2.79 mm	Through Hole Right Angle	Male Pin	Brass	Black	105 ░C	-55 °C	Header	0.079 in	2 mm	Polybutylene Terephthalate (PBT)	UL94 V-0	Unshrouded	Gold	Push-Pull	250 VAC	Square	0.154 in	3.91 mm	Flash	All	Gold	Solder	Flash	1
Adam Tech 2PH1R-18-UA	0.079 in	2 mm	18	0.11 in	2.79 mm	Through Hole Right Angle	Male Pin	Brass	Black	105 ░C	-55 °C	Header	0.079 in	2 mm	Polybutylene Terephthalate (PBT)	UL94 V-0	Unshrouded	Gold	Push-Pull	250 VAC	Square	0.154 in	3.91 mm	Flash	All	Gold	Solder	Flash	1
Adam Tech 2PH1R-07-UA	0.079 in	2 mm	7	0.11 in	2.79 mm	Through Hole Right Angle	Male Pin	Brass	Black	105 ░C	-55 °C	Header	0.079 in	2 mm	Polybutylene Terephthalate (PBT)	UL94 V-0	Unshrouded	Gold	Push-Pull	250 VAC	Square	0.154 in	3.91 mm	Flash	All	Gold	Solder	Flash	1
Adam Tech 2PH1R-06-UA	0.079 in	2 mm	6	0.11 in	2.79 mm	Through Hole Right Angle	Male Pin	Brass	Black	105 ░C	-55 °C	Header	0.079 in	2 mm	Polybutylene Terephthalate (PBT)	UL94 V-0	Unshrouded	Gold	Push-Pull	250 VAC	Square	0.154 in	3.91 mm	Flash	All	Gold	Solder	Flash	1
Adam Tech 2PH1R-13-UA	0.079 in	2 mm	13	0.11 in	2.79 mm	Through Hole Right Angle	Male Pin	Brass	Black	105 ░C	-55 °C	Header	0.079 in	2 mm	Polybutylene Terephthalate (PBT)	UL94 V-0	Unshrouded	Gold	Push-Pull	250 VAC	Square	0.154 in	3.91 mm	Flash	All	Gold	Solder	Flash	1
Adam Tech 2PH1R-12-UA	0.079 in	2 mm	12	0.11 in	2.79 mm	Through Hole Right Angle	Male Pin	Brass	Black	105 ░C	-55 °C	Header	0.079 in	2 mm	Polybutylene Terephthalate (PBT)	UL94 V-0	Unshrouded	Gold	Push-Pull	250 VAC	Square	0.154 in	3.91 mm	Flash	All	Gold	Solder	Flash	1
Adam Tech 2PH1R-20-UA	0.079 in	2 mm	20	0.11 in	2.79 mm	Through Hole Right Angle	Male Pin	Brass	Black	105 ░C	-55 °C	Header	0.079 in	2 mm	Polybutylene Terephthalate (PBT)	UL94 V-0	Unshrouded	Gold	Push-Pull	250 VAC	Square	0.154 in	3.91 mm	Flash	All	Gold	Solder	Flash	1
Adam Tech 2PH1R-02-UA	0.079 in	2 mm	2	0.11 in	2.79 mm	Through Hole Right Angle	Male Pin	Brass	Black	105 ░C	-55 °C	Header	0.079 in	2 mm	Polybutylene Terephthalate (PBT)	UL94 V-0	Unshrouded	Gold	Push-Pull	250 VAC	Square	0.154 in	3.91 mm	Flash	All	Gold	Solder	Flash	1
