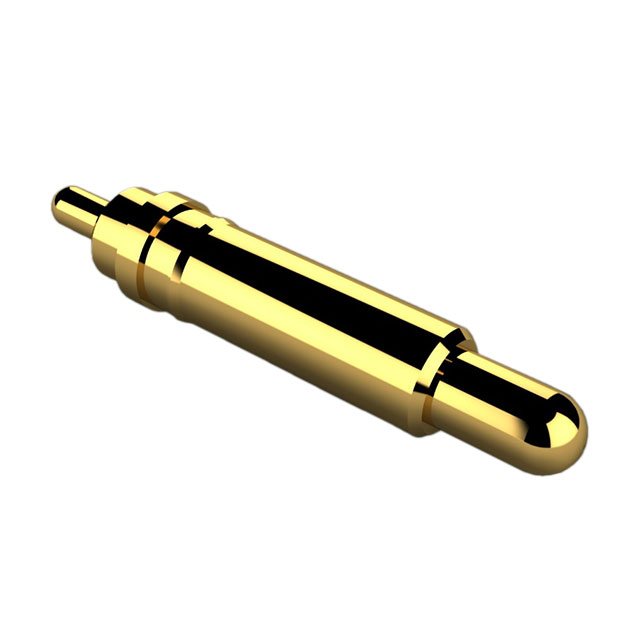

90055-AS
ActivePRECI-DIP SA
CONTACT SPRING LOADED SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
90055-AS
ActivePRECI-DIP SA
CONTACT SPRING LOADED SMD GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 90055-AS |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 0.51 µm |
| Contact Finish Thickness | 20 µin |
| Contact Material | Brass Alloy |
| Contact Type | Sleeve & Plunger (Pogo Pins) |
| Current Rating (Amps) | 3 A |
| Mating Cycles | 40000 |
| Maximum Working Height [Max] | 7.53 mm |
| Maximum Working Height [Max] | 0.296 in |
| Minimum Working Height [Min] | 0.241 in |
| Minimum Working Height [Min] | 6.13 mm |
| Mounting Type | Through Hole |
| Operating Force - Initial | 25.49 gf |
| Operating Force - Mid Compression | 61.18 gf |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pad Layout Dimension [diameter] | 1.4 mm |
| Pad Layout Dimension [diameter] | 0.055 " |
| Plunger Size [diameter] | 0.042 in |
| Plunger Size [diameter] | 1.07 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.22 | |
| 10 | $ 1.03 | |||
| 25 | $ 0.99 | |||
| 50 | $ 0.96 | |||
| 100 | $ 0.92 | |||
| 250 | $ 0.84 | |||
| 500 | $ 0.75 | |||
| 1000 | $ 0.67 | |||
| 2500 | $ 0.61 | |||
Description
General part information
90055 Series
Contact Spring Through Hole
