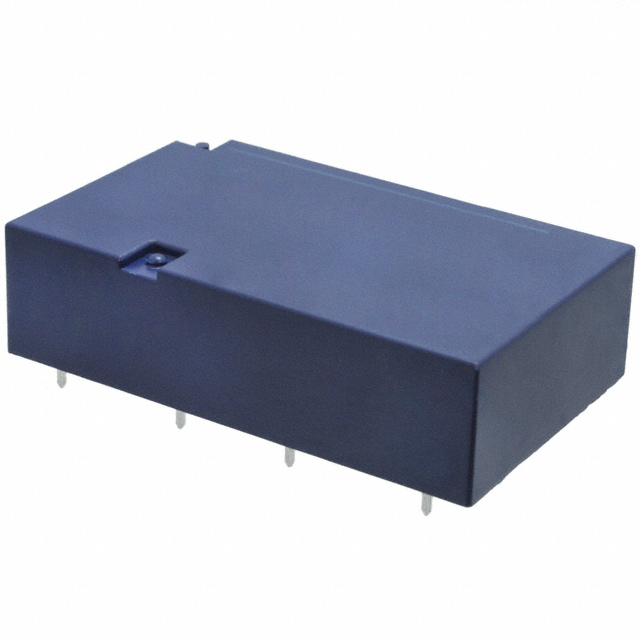

SFN4D-DC12V
ActivePanasonic Electric Works
RELAY SAFETY 6PST 8A 12V
Deep-Dive with AI
Search across all available documentation for this part.
SFN4D-DC12V
ActivePanasonic Electric Works
RELAY SAFETY 6PST 8A 12V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SFN4D-DC12V |
|---|---|
| Coil Current | 32.5 mA |
| Coil Power | 400 mW |
| Coil Resistance | 369 Ohms |
| Coil Voltage | 12 VDC |
| Contact Form | 6PST-4NO/2NC (4 Form A, 2 Form B) |
| Contact Material | Gold (Au), Silver Tin Oxide (AgSnO) |
| Contact Rating (Current) | 8 A |
| Mounting Type | Through Hole |
| Must Operate Voltage | 9 VDC |
| Must Release Voltage | 3 VDC |
| Operate Time | 23 ms |
| Operating Temperature [Max] | 92 °C |
| Operating Temperature [Min] | -25 °C |
| Release Time | 6 ms |
| Switching Voltage | 500 VAC, 500 VDC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 36.44 | |
| 20 | $ 34.62 | |||
| 40 | $ 30.97 | |||
| 100 | $ 29.15 | |||
| 260 | $ 27.33 | |||
Description
General part information
SFN4D Series
RELAY SAFETY 6PST 8A 12V
