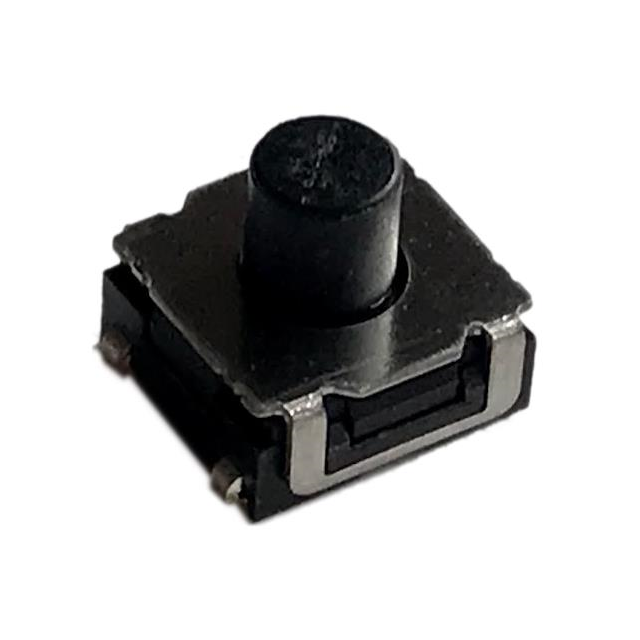

222PJVAAR

Active

Tusonix a Subsidiary of CTS Electronic Components

SWITCH TACTILE SPST-NO 0.05A 32V

Search across all available documentation for this part.

Active

Tusonix a Subsidiary of CTS Electronic Components

SWITCH TACTILE SPST-NO 0.05A 32V

Technical Specifications

Parameters and characteristics for this part

Specification	222PJVAAR

Actuator Height off PCB, Vertical [z]	5.6 mm
Actuator Orientation	Top Actuated
Actuator Type	Standard
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A
Features	Tactile Feedback
Illumination	Non-Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof
Mechanical Life	100000 Cycles
Mounting Type	Surface Mount
Operating Force	200 gf
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Outline [x]	6.2 mm
Outline [y]	6.2 mm
Switch Function	Off-Mom
Switch Travel	0.25 mm
Termination Style	J Lead

Part	Features	Ingress Protection	Outline [y]	Outline [x]	Mechanical Life	Operating Force	Mounting Type	Actuator Type	Contact Rating @ Voltage	Actuator Orientation	Termination Style	Switch Function	Illumination	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Actuator Height off PCB, Vertical [z]	Switch Travel
Tusonix a Subsidiary of CTS Electronic Components 222PJVAAR	Tactile Feedback	IP67 - Dust Tight Waterproof	6.2 mm	6.2 mm	100000 Cycles	200 gf	Surface Mount	Standard	0.05 A	Top Actuated	J Lead	Off-Mom	Non-Illuminated	85 °C	-40 °C	SPST-NO	5.6 mm	0.25 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Top Actuated Surface Mount
