TR9KZ6316T00-IM(R6B)

Active

GlobTek, Inc.

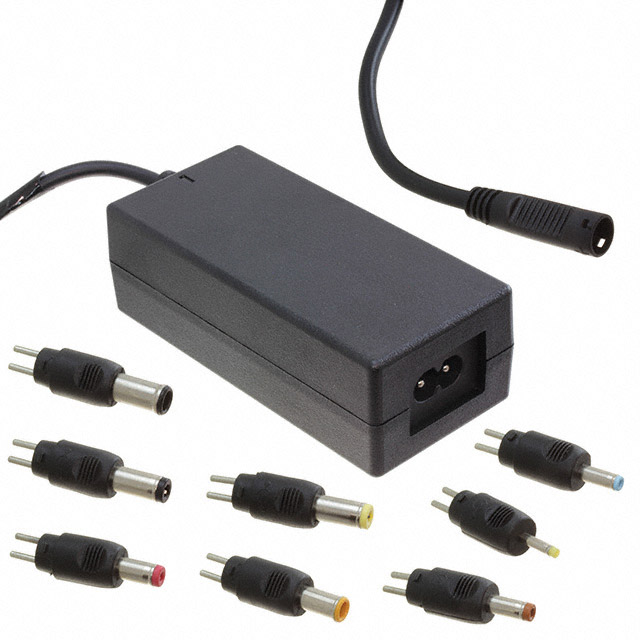

AC/DC DESKTOP ADAPTER 19V 120W

Search across all available documentation for this part.

Active

GlobTek, Inc.

AC/DC DESKTOP ADAPTER 19V 120W

Technical Specifications

Parameters and characteristics for this part

Specification	TR9KZ6316T00-IM(R6B)

Applications	Household Appliances, ITE (Commercial), Medical
Approval Agency	CE, CCC, ETL, UKRSepro, CB, RCM, EAC, S-Mark, PSE, VCCI
Cord Length	1.2 m
Cord Length	47.2 in
Current - Output (Max) [Max]	6.32 A
Efficiency	Level VI
Form	Desktop (Class II)
Input Connector	IEC 320-C8
Input Type	Cord
No Load Power Consumption [Max]	150 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-20 C
Output Connector	Barrel Plug Kit, 1.3mm x 3.5mm
Power (Watts)	120 W
Region Utilized	International
Size / Dimension [x]	149.3 mm
Size / Dimension [x]	5.88 in
Size / Dimension [y]	62.8 mm
Size / Dimension [y]	2.47 in
Size / Dimension [z]	1.34 in
Size / Dimension [z]	34 mm
Standard Number	62368-1, 60601-1-11, 60601-1-2, 61347-1, 60335-1, 60950-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	19 V

Part	Voltage - Output	Standard Number	Input Type	Current - Output (Max) [Max]	Cord Length	Cord Length	Voltage - Input [Min]	Voltage - Input [Max]	No Load Power Consumption [Max]	Applications	Input Connector	Output Connector	Region Utilized	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Efficiency	Approval Agency	Form	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)
GlobTek, Inc. TR9KZ6316T00-IM(R6B)	19 V	60335-1 60601-1-11 60601-1-2 60950-1 61347-1 62368-1	Cord	6.32 A	1.2 m	47.2 in	90 VAC	264 VAC	150 mW	Household Appliances ITE (Commercial) Medical	IEC 320-C8	1.3mm x 3.5mm Barrel Plug Kit	International	149.3 mm	62.8 mm	2.47 in	1.34 in	5.88 in	34 mm	Level VI	CB CCC CE EAC ETL PSE RCM S-Mark UKRSepro VCCI	Desktop (Class II)	-20 C	40 °C	120 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 40.00

General part information

19V 120 W AC/DC External Desktop (Class II) Adapter Cord (Sold Separately) Input
