Q-090360008002F
ActiveAmphenol Custom Cable

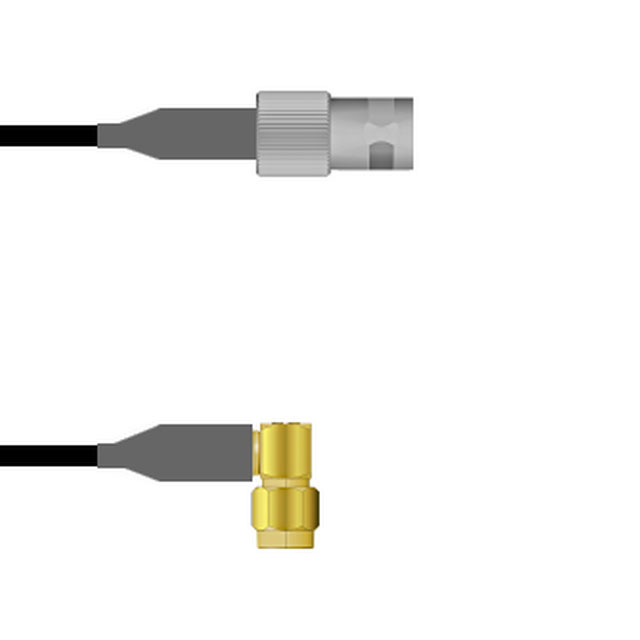

COAX CBL BNC TO SMA 24"
Deep-Dive with AI
Search across all available documentation for this part.
Q-090360008002F
ActiveAmphenol Custom Cable
COAX CBL BNC TO SMA 24"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Q-090360008002F |
|---|---|
| 1st Connector | BNC Jack |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | SMA Plug, Right Angle |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | RG-58 |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Features | Shielded |
| Frequency - Max [Max] | 4 GHz |
| Length | 24 " |
| Length | 609.6 mm |
| Overall Impedance | 50 Ohms |
| Style | BNC to SMA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 84.53 | |
| 25 | $ 82.87 | |||
| 50 | $ 81.22 | |||
| 100 | $ 79.56 | |||
| 250 | $ 77.90 | |||
Description
General part information
Q-090360 Series
Cable Assembly Coaxial BNC to SMA RG-58 24.00" (609.60mm)
