XJ8D-0311

Active

Omron Electronics Inc-EMC Div

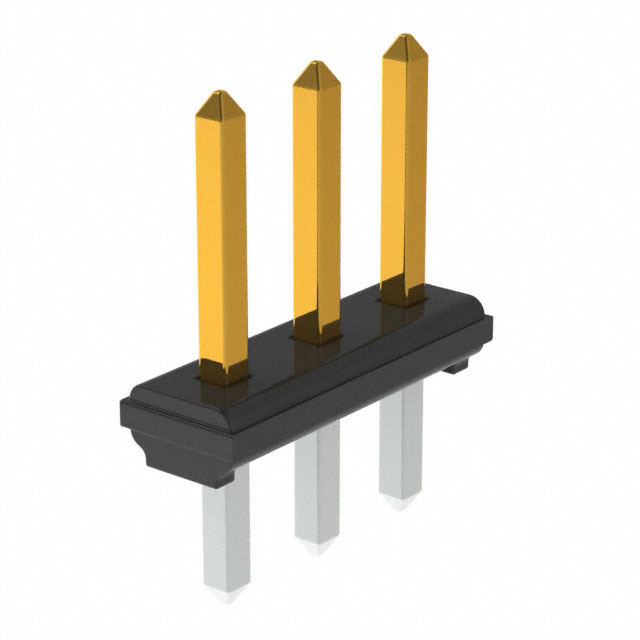

CONN HEADER VERT 3POS

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

CONN HEADER VERT 3POS

Technical Specifications

Parameters and characteristics for this part

Specification	XJ8D-0311

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	0.15 µm
Contact Finish Thickness - Mating	5.9 µin
Contact Length - Mating [x]	4.3 mm
Contact Length - Mating [x]	0.169 in
Contact Length - Post	2.79 mm
Contact Length - Post [x]	0.11 in
Contact Material	Brass, Nickel
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	2 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	1.5 mm
Insulation Height	0.059 "
Insulation Material	Polyphenylene Sulfide (PPS), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions Loaded	All
Number of Rows	3
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Overall Contact Length	8.6 mm
Overall Contact Length	0.339 in
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	300 VDC

Part	Insulation Height	Insulation Height	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Color	Number of Positions Loaded	Shrouding	Voltage Rating	Number of Rows	Contact Length - Post [x]	Contact Length - Post	Connector Type	Contact Material	Contact Shape	Contact Type	Mounting Type	Style	Material Flammability Rating	Fastening Type	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Mating	Insulation Material	Current Rating (Amps)	Contact Length - Mating [x]	Contact Length - Mating [x]	Overall Contact Length	Overall Contact Length	Termination
Omron Electronics Inc-EMC Div XJ8D-1811	1.5 mm	0.059 "	2.54 mm	0.1 in	Black	All	Unshrouded	300 VDC	3	0.11 in	2.79 mm	Header	Brass Nickel	Square	Male Pin	Through Hole	Board to Board Cable	UL94 V-0	Push-Pull	18	0.15 µm	5.9 µin	0.1 in	2.54 mm	105 ░C	-55 °C	Gold	Polyphenylene Sulfide (PPS) Glass Filled	2 A	4.3 mm	0.169 in	8.6 mm	0.339 in	Solder
Omron Electronics Inc-EMC Div XJ8D-0311	1.5 mm	0.059 "	2.54 mm	0.1 in	Black	All	Unshrouded	300 VDC	3	0.11 in	2.79 mm	Header	Brass Nickel	Square	Male Pin	Through Hole	Board to Board Cable	UL94 V-0	Push-Pull		0.15 µm	5.9 µin			105 ░C	-55 °C	Gold	Polyphenylene Sulfide (PPS) Glass Filled	2 A	4.3 mm	0.169 in	8.6 mm	0.339 in	Solder
