2952350

Active

Phoenix Contact

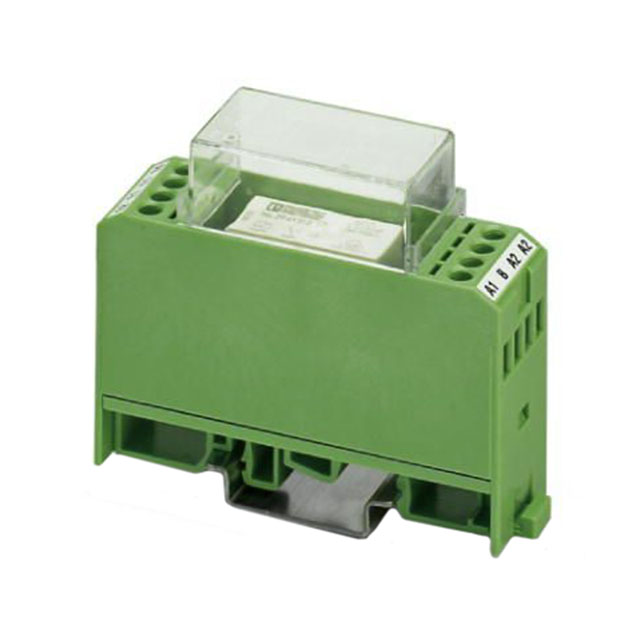

RELAY GEN PURPOSE SPDT 5A 24V

Search across all available documentation for this part.

Active

Phoenix Contact

RELAY GEN PURPOSE SPDT 5A 24V

Technical Specifications

Parameters and characteristics for this part

Specification	2952350

Coil Current	21 mA
Coil Type	Non Latching
Coil Voltage	24 VDC
Contact Form	SPDT (1 Form C)
Contact Material	Silver Nickel (AgNi)
Contact Rating (Current)	5 A
Features	Socket Included, Diode, Lighted Indicator
Mounting Type	DIN Rail
Operate Time	9 ms
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-20 C
Relay Type	General Purpose
Release Time	10 ms
Switching Voltage	250 VAC, 110 VDC
Termination Style	Screw Terminal

Part	Contact Material	Coil Current	Operating Temperature [Max]	Operating Temperature [Min]	Relay Type	Contact Form	Operate Time	Coil Voltage	Features	Switching Voltage	Contact Rating (Current)	Coil Type	Release Time	Termination Style	Mounting Type
Phoenix Contact 2952350	Silver Nickel (AgNi)	21 mA	50 °C	-20 C	General Purpose	SPDT (1 Form C)	9 ms	24 VDC	Diode Lighted Indicator Socket Included	110 VDC 250 VAC	5 A	Non Latching	10 ms	Screw Terminal	DIN Rail

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 115.84

General part information

General Purpose Relay SPDT (1 Form C) 24VDC Coil DIN Rail
