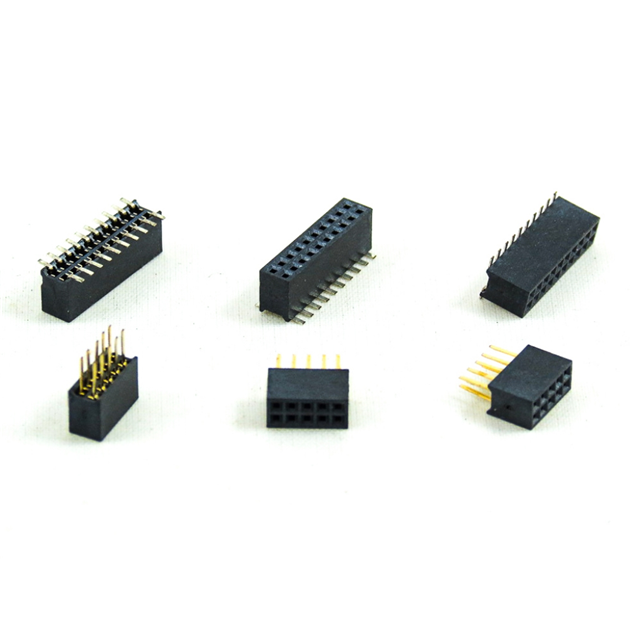

2242-2X25G00DT-P

Active

Oupiin

PCB SOCKET, DOUBLE ROW, 50 PIN,

Search across all available documentation for this part.

Active

Oupiin

PCB SOCKET, DOUBLE ROW, 50 PIN,

Technical Specifications

Parameters and characteristics for this part

Specification	2242-2X25G00DT-P

Connector Type	Socket
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Push-Pull
Features	Pick and Place
Insulation Color	Black
Insulation Height	4.3 mm
Insulation Height	0.169 "
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	50
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Termination	Solder

Part	Number of Positions Loaded	Insulation Material	Number of Positions	Mounting Type	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness - Mating	Number of Rows	Contact Finish - Mating	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Features	Fastening Type	Row Spacing - Mating	Row Spacing - Mating	Contact Shape	Contact Finish Thickness - Post	Contact Finish - Post	Contact Material	Insulation Color	Connector Type	Termination	Number of Positions	Material Flammability Rating
Oupiin 2242-2X08C00DU-P	All	Liquid Crystal Polymer (LCP)	16	Surface Mount	Female Socket	125 °C	-65 ░C	Flash	2	Gold	0.05 in	1.27 mm	4.3 mm	0.169 "	Pick and Place	Push-Pull	0.05 in	1.27 mm	Square	Flash	Gold	Phosphor Bronze	Black	Socket	Solder
Oupiin 2242-2X25G00DT-P	All	Liquid Crystal Polymer (LCP)		Surface Mount	Female Socket	125 °C	-65 ░C	Flash	2	Gold	0.05 in	1.27 mm	4.3 mm	0.169 "	Pick and Place	Push-Pull	0.05 in	1.27 mm	Square	Flash	Gold	Phosphor Bronze	Black	Socket	Solder	50	UL94 V-0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1	$ 2.71

General part information

50 Position Socket Connector 0.050" (1.27mm) Surface Mount Gold
