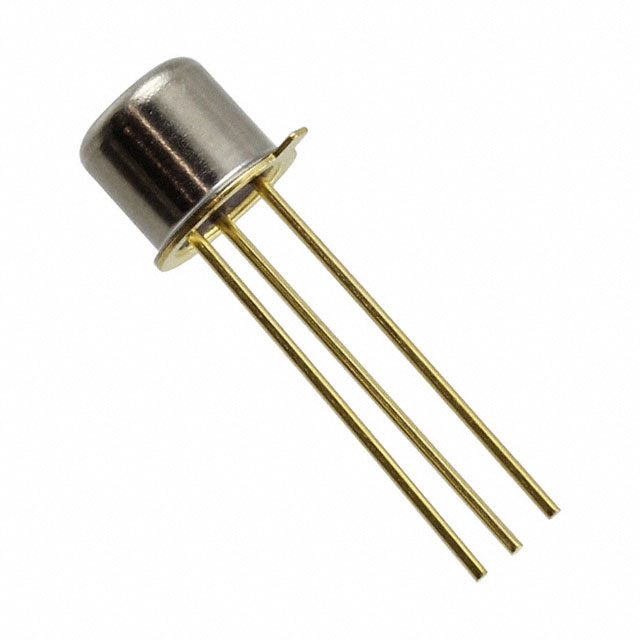

2N3962

Obsolete

ON Semiconductor

TRANS PNP 60V 0.2A TO18

Search across all available documentation for this part.

Obsolete

ON Semiconductor

TRANS PNP 60V 0.2A TO18

Technical Specifications

Parameters and characteristics for this part

Specification	2N3962

Current - Collector (Ic) (Max) [Max]	200 mA
Current - Collector Cutoff (Max) [Max]	10 nA
DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	100
Mounting Type	Through Hole
Package / Case	TO-18-3 Metal Can, TO-206AA
Power - Max [Max]	360 mW
Supplier Device Package	TO-18
Transistor Type	PNP
Vce Saturation (Max) @ Ib, Ic	400 mV
Voltage - Collector Emitter Breakdown (Max)	60 V

Part	Supplier Device Package	Current - Collector (Ic) (Max) [Max]	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Vce Saturation (Max) @ Ib, Ic	Package / Case	Voltage - Collector Emitter Breakdown (Max)	Current - Collector Cutoff (Max) [Max]	Mounting Type	Power - Max [Max]	Transistor Type
ON Semiconductor 2N3962	TO-18	200 mA	100	400 mV	TO-18-3 Metal Can TO-206AA	60 V	10 nA	Through Hole	360 mW	PNP

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Bipolar (BJT) Transistor PNP 60 V 200 mA 360 mW Through Hole TO-18
