AOCA32112E

Active

Alpha & Omega Semiconductor Inc.

MOSFET 2N-CH 20V 4.5A 4ALPHADFN

Search across all available documentation for this part.

Active

Alpha & Omega Semiconductor Inc.

MOSFET 2N-CH 20V 4.5A 4ALPHADFN

Technical Specifications

Parameters and characteristics for this part

Specification	AOCA32112E

Configuration	2 N-Channel (Dual) Common Drain
Current - Continuous Drain (Id) @ 25°C	4.5 A
Drain to Source Voltage (Vdss)	20 V
Gate Charge (Qg) (Max) @ Vgs	11.5 nC
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	4-SMD, No Lead
Power - Max [Max]	1.1 W
Rds On (Max) @ Id, Vgs	48 mOhm

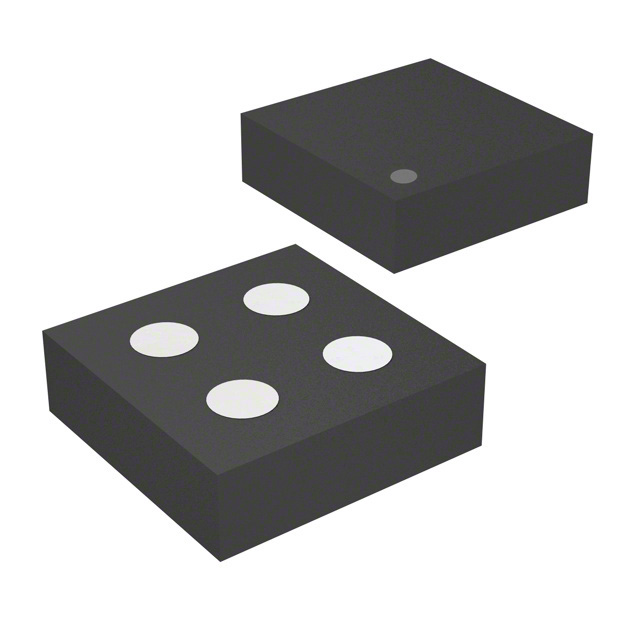

Supplier Device Package	4-AlphaDFN (0.97x0.97)
Technology	MOSFET (Metal Oxide)
Vgs(th) (Max) @ Id	1.3 V

Part	Current - Continuous Drain (Id) @ 25°C	Vgs(th) (Max) @ Id	Power - Max [Max]	Drain to Source Voltage (Vdss)	Configuration	Package / Case	Supplier Device Package	Mounting Type	Rds On (Max) @ Id, Vgs	Operating Temperature [Min]	Operating Temperature [Max]	Gate Charge (Qg) (Max) @ Vgs	Technology
Alpha & Omega Semiconductor Inc. AOCA32112E	4.5 A	1.3 V	1.1 W	20 V	2 N-Channel (Dual) Common Drain	4-SMD No Lead	4-AlphaDFN (0.97x0.97)	Surface Mount	48 mOhm	-55 °C	150 °C	11.5 nC	MOSFET (Metal Oxide)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Mosfet Array 20V 4.5A (Ta) 1.1W (Ta) Surface Mount 4-AlphaDFN (0.97x0.97)
