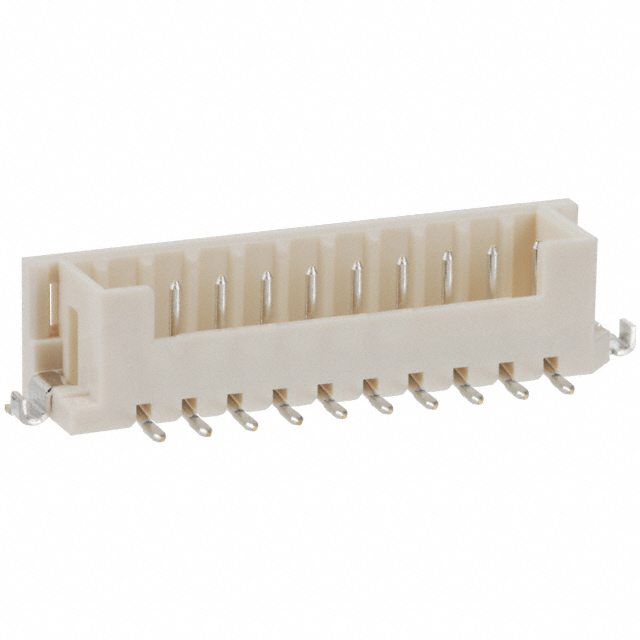

DF3-10P-2V(20)

Obsolete

Hirose Electric USA, Inc.

CONN HEADER SMD 10POS 2MM

Search across all available documentation for this part.

Obsolete

Hirose Electric USA, Inc.

CONN HEADER SMD 10POS 2MM

Technical Specifications

Parameters and characteristics for this part

Specification	DF3-10P-2V(20)

Connector Type	Header
Contact Finish - Post	Tin
Contact Material	Brass
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Features	Board Guide
Insulation Color	Beige
Insulation Height	5.9 mm
Insulation Height	0.232 in
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder

Part	Contact Type	Contact Length - Mating [x]	Contact Length - Mating [x]	Material Flammability Rating	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Insulation Material	Number of Rows	Number of Positions Loaded	Style	Pitch - Mating [x]	Pitch - Mating [x]	Mounting Type	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Length - Post	Contact Length - Post	Termination	Current Rating (Amps)	Insulation Height	Insulation Height	Contact Finish - Mating	Insulation Color	Contact Shape	Number of Positions	Shrouding	Contact Finish - Post	Features
Hirose Electric USA, Inc. DF3-10P-2DS(01)	Male Pin	0.122 in	3.1 mm	UL94 V-0	Header	0.203 Ám	8 Áin	Brass	Nylon Polyamide (PA)	1	All	Board to Board Cable	0.079 in	2 mm	Through Hole Right Angle	Push-Pull	105 ░C	-55 °C	0.114 in	2.9 mm	Press-Fit Solder	3 A	0.197 in	5 mm	Gold	Black	Square	10	Shrouded - 4 Wall
Hirose Electric USA, Inc. DF3-10P-2V(20)	Male Pin			UL94 V-0	Header			Brass	Nylon Polyamide (PA)	1	All	Board to Board Cable	0.079 in	2 mm	Surface Mount	Push-Pull	105 ░C	-55 °C			Solder	3 A	0.232 in	5.9 mm		Beige	Circular	10	Shrouded - 4 Wall	Tin	Board Guide
Hirose Electric USA, Inc. DF3-10P-2DS	Male Pin	0.122 in	3.1 mm	UL94 V-0	Header			Brass	Nylon Polyamide (PA)	1	All	Board to Board Cable	0.079 in	2 mm	Through Hole Right Angle	Push-Pull	105 ░C	-55 °C	0.114 in	2.9 mm	Press-Fit Solder	3 A	0.197 in	5 mm		Black	Square	10	Shrouded - 4 Wall	Tin
