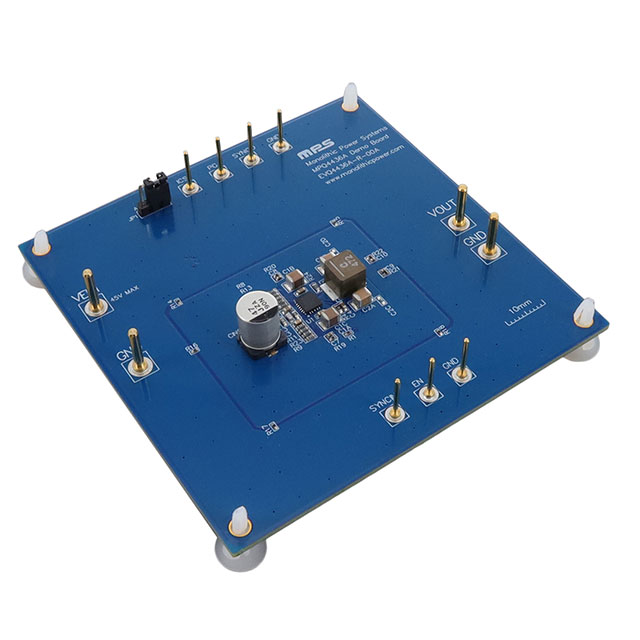

EVQ4436A-R-00A

Active

MONOLITHIC POWER SYSTEMS (MPS)

EVAL BOARD FOR MPQ4436A-AEC1

Search across all available documentation for this part.

Active

MONOLITHIC POWER SYSTEMS (MPS)

EVAL BOARD FOR MPQ4436A-AEC1

Technical Specifications

Parameters and characteristics for this part

Part	Qualification	Function	Output Type	Voltage - Input (Max) [Max]	Number of Outputs	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Grade	Voltage - Output (Max) [Max]	Current - Output	Frequency - Switching	Output Configuration	Topology	Supplier Device Package	Frequency - Switching [Max]	Frequency - Switching [Min]	Utilized IC / Part	Main Purpose	Voltage - Input [Max]	Voltage - Input [Min]	Supplied Contents	Board Type	Regulator Topology	Outputs and Type	Outputs and Type	Voltage - Output
MONOLITHIC POWER SYSTEMS (MPS) MPQ4436AGRE-AEC1-P	AEC-Q100	Step-Down	Adjustable	45 V	1	Surface Mount Wettable Flank	150 °C	-40 °C	Automotive	45 V	6 A	470 kHz	Positive	Buck	20-QFN (4x4)
MONOLITHIC POWER SYSTEMS (MPS) MPQ4436BGRE-AEC1-Z	AEC-Q100	Step-Down	Adjustable	45 V	1	Surface Mount Wettable Flank	150 °C	-40 °C	Automotive	42.75 V	6 A		Positive	Buck	20-QFN (4x4)	1 MHz	350 kHz
MONOLITHIC POWER SYSTEMS (MPS) EVQ4436-R-01A											6 A							MP4436 MPQ4436 MPQ4436-AEC1	DC/DC Step Down	45 V	3.3 V	Board(s)	Fully Populated	Buck	Non-Isolated	1	3.3 V
MONOLITHIC POWER SYSTEMS (MPS) MPQ4436BGRE-AEC1-P	AEC-Q100	Step-Down	Adjustable	45 V	1	Surface Mount Wettable Flank	150 °C	-40 °C	Automotive	42.75 V	6 A		Positive	Buck	20-QFN (4x4)	1 MHz	350 kHz
MONOLITHIC POWER SYSTEMS (MPS) EVQ4436A-R-00A											6 A							MPQ4436A MPQ4436A-AEC1	DC/DC Step Down	45 V	3.3 V	Board(s)	Fully Populated	Buck	Non-Isolated	1	3.3 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 50.00

General part information

MPQ4436A, MPQ4436A-AEC1 - DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
