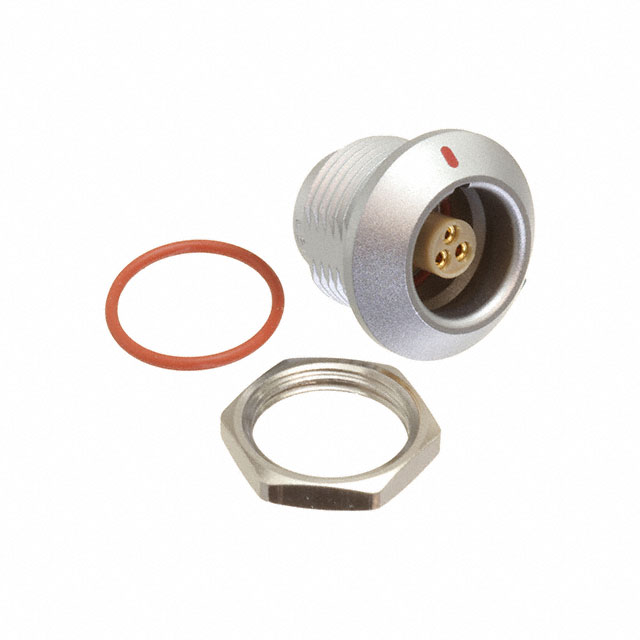

EGG.0K.303.CLL

Active

LEMO

CONN RCPT FMALE 3P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EGG.0K.303.CLL

Active

LEMO

CONN RCPT FMALE 3P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EGG.0K.303.CLL

Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	59 Áin
Contact Finish Thickness - Mating	1.5 Ám
Contact Material	Bronze
Current Rating (Amps)	8 A
Fastening Type	Push-Pull
Ingress Protection	IP66/IP68
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-55 °C
Orientation	G
Primary Material	Metal
Shell Finish	Chrome
Shell Material	Brass
Shell Size - Insert	303
Shielding	Shielded

EGG.0K Series

Part	Insert Material	Connector Type	Mounting Feature	Current Rating (Amps)	Orientation	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Ingress Protection	Shell Material	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Color	Primary Material	Shell Size - Insert	Contact Material	Number of Positions	Fastening Type	Shielding	Contact Finish - Mating	Termination	Shell Finish	Mounting Type
LEMO EGG.0K.309.KLL	Polyetheretherketone (PEEK)	Receptacle Female Sockets	Bulkhead - Rear Side Nut	2 A	G	59 Áin	1.5 Ám	IP66/IP68	Brass	UL94 V-0	-55 °C	200 °C	Black	Metal	309	Bronze	9	Push-Pull	Shielded	Gold
LEMO EGG.0K.302.CYM	Polyetheretherketone (PEEK)	Receptacle Female Sockets	Bulkhead - Rear Side Nut	10 A	G	59 Áin	1.5 Ám	IP66/IP68	Brass	UL94 V-0	-55 °C	200 °C	Silver	Metal	302	Bronze	2	Push-Pull	Shielded	Gold	Crimp	Chrome
LEMO EGG.0K.307.CLL	Polyetheretherketone (PEEK)	Receptacle Female Sockets	Bulkhead - Rear Side Nut	2.5 A	G	59 Áin	1.5 Ám	IP66/IP68	Brass	UL94 V-0	-55 °C	200 °C	Silver	Metal	307	Bronze	7	Push-Pull	Shielded	Gold		Chrome
LEMO EGG.0K.306.KLL	Polyetheretherketone (PEEK)	Receptacle Female Sockets	Bulkhead - Rear Side Nut	2.5 A	G	59 Áin	1.5 Ám	IP66/IP68	Brass	UL94 V-0	-55 °C	200 °C	Black	Metal	306	Bronze	6	Push-Pull	Shielded	Gold
LEMO EGG.0K.309.CLN	Polyetheretherketone (PEEK)	Receptacle Female Sockets	Bulkhead - Rear Side Nut	2 A	G	59 Áin	1.5 Ám	IP66/IP68	Brass	UL94 V-0	-55 °C	200 °C	Silver	Metal	309	Bronze	9	Push-Pull	Shielded	Gold	Solder	Chrome	Panel Mount Through Hole
LEMO EGG.0K.304.CLL	Polyetheretherketone (PEEK)	Receptacle Female Sockets	Bulkhead - Rear Side Nut	7 A	G	59 Áin	1.5 Ám	IP66/IP68	Brass	UL94 V-0	-55 °C	200 °C	Silver	Metal	304	Bronze	4	Push-Pull	Shielded	Gold		Chrome
LEMO EGG.0K.303.CLL	Polyetheretherketone (PEEK)	Receptacle Female Sockets	Bulkhead - Rear Side Nut	8 A	G	59 Áin	1.5 Ám	IP66/IP68	Brass	UL94 V-0	-55 °C	200 °C	Silver	Metal	303	Bronze		Push-Pull	Shielded	Gold		Chrome
LEMO EGG.0K.303.CYM	Polyetheretherketone (PEEK)	Receptacle Female Sockets	Bulkhead - Rear Side Nut	8 A	G	59 Áin	1.5 Ám	IP66/IP68	Brass	UL94 V-0	-55 °C	200 °C	Silver	Metal	303	Bronze		Push-Pull	Shielded	Gold	Crimp	Chrome

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 31.84
		10	$ 27.88
		25	$ 26.68
		50	$ 25.82
		100	$ 24.96
		250	$ 23.58

Description

General part information

EGG.0K Series

3 Position Circular Connector Receptacle, Female Sockets Solder Cup
