1415113

Active

Phoenix Contact

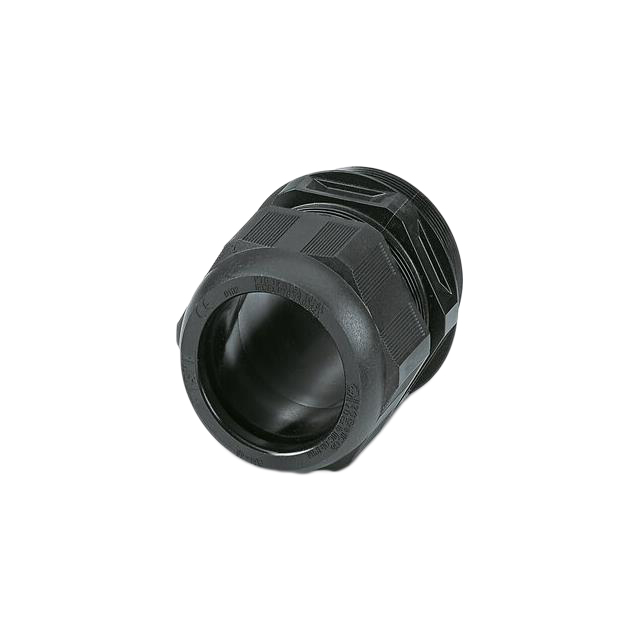

CABLE GLAND 34-48MM M63 POLYAMID

Search across all available documentation for this part.

Active

Phoenix Contact

CABLE GLAND 34-48MM M63 POLYAMID

Technical Specifications

Parameters and characteristics for this part

Specification	1415113

Color	Black
Includes	Seal
Ingress Protection	IP66/IP68
Material	Polyamide (PA), Nylon
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	48 mm
Outside Cable Diameter (Max) [Max] [diameter]	1.89 "
Outside Cable Diameter (Min) [Min] [diameter]	1.339 in
Outside Cable Diameter (Min) [Min] [diameter]	34 mm
Thread Length	0.709 in
Thread Length	18.01 mm
Thread Size	M63
Type	Cable Gland

Part	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Thread Length	Thread Length	Type	Thread Size	Includes	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Material	Color
Phoenix Contact 1415122	48 mm	1.89 "	0.709 in	18.01 mm	Cable Gland	M63	Seal	1.339 in	34 mm	-40 °C	75 ░C	IP66/IP68	Polyamide (PA) Nylon	Black Blue
Phoenix Contact 1415113	48 mm	1.89 "	0.709 in	18.01 mm	Cable Gland	M63	Seal	1.339 in	34 mm	-40 °C	75 ░C	IP66/IP68	Polyamide (PA) Nylon	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 59.29

General part information

Cable Gland Polyamide (PA), Nylon M63 Black

Technical documentation and resources
